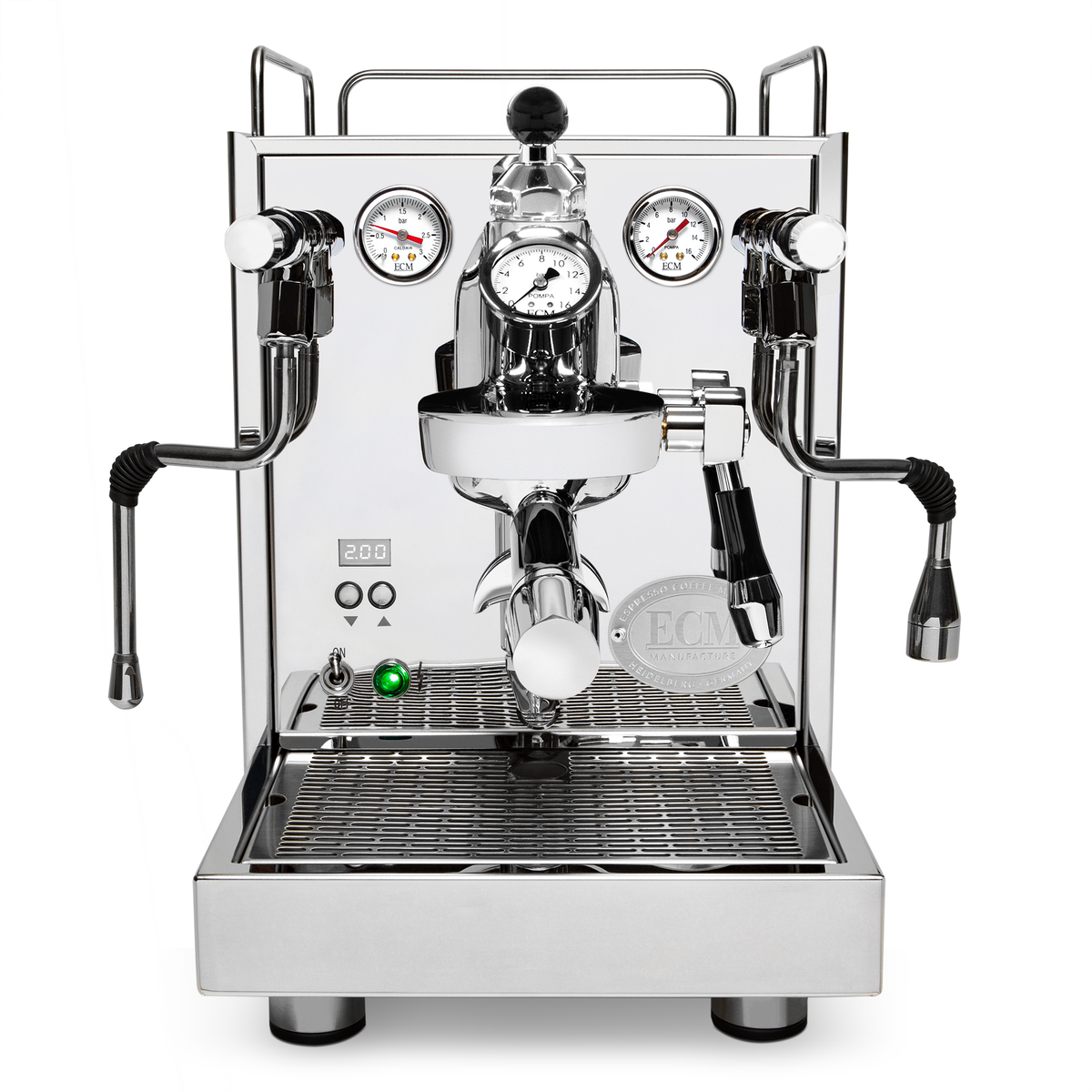

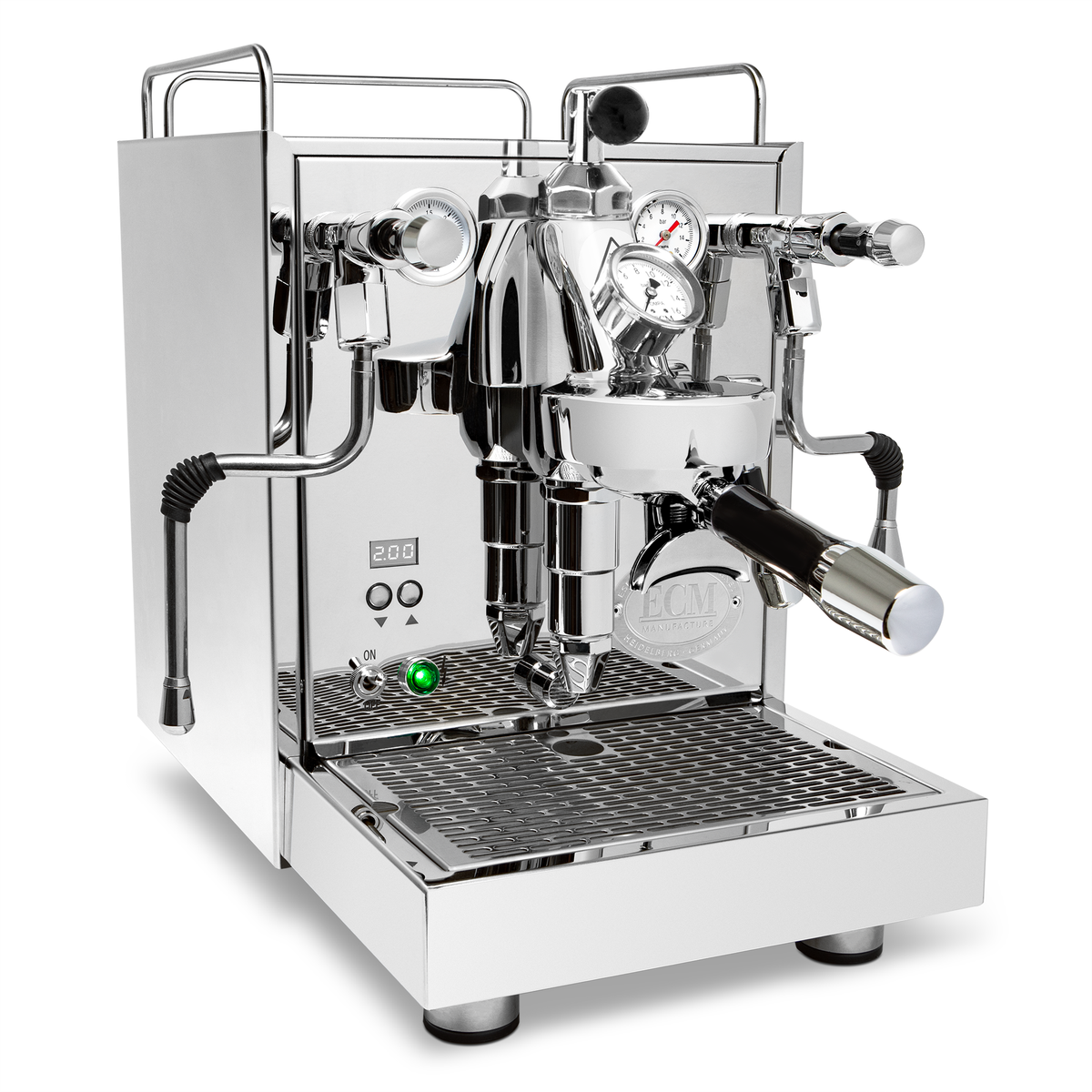

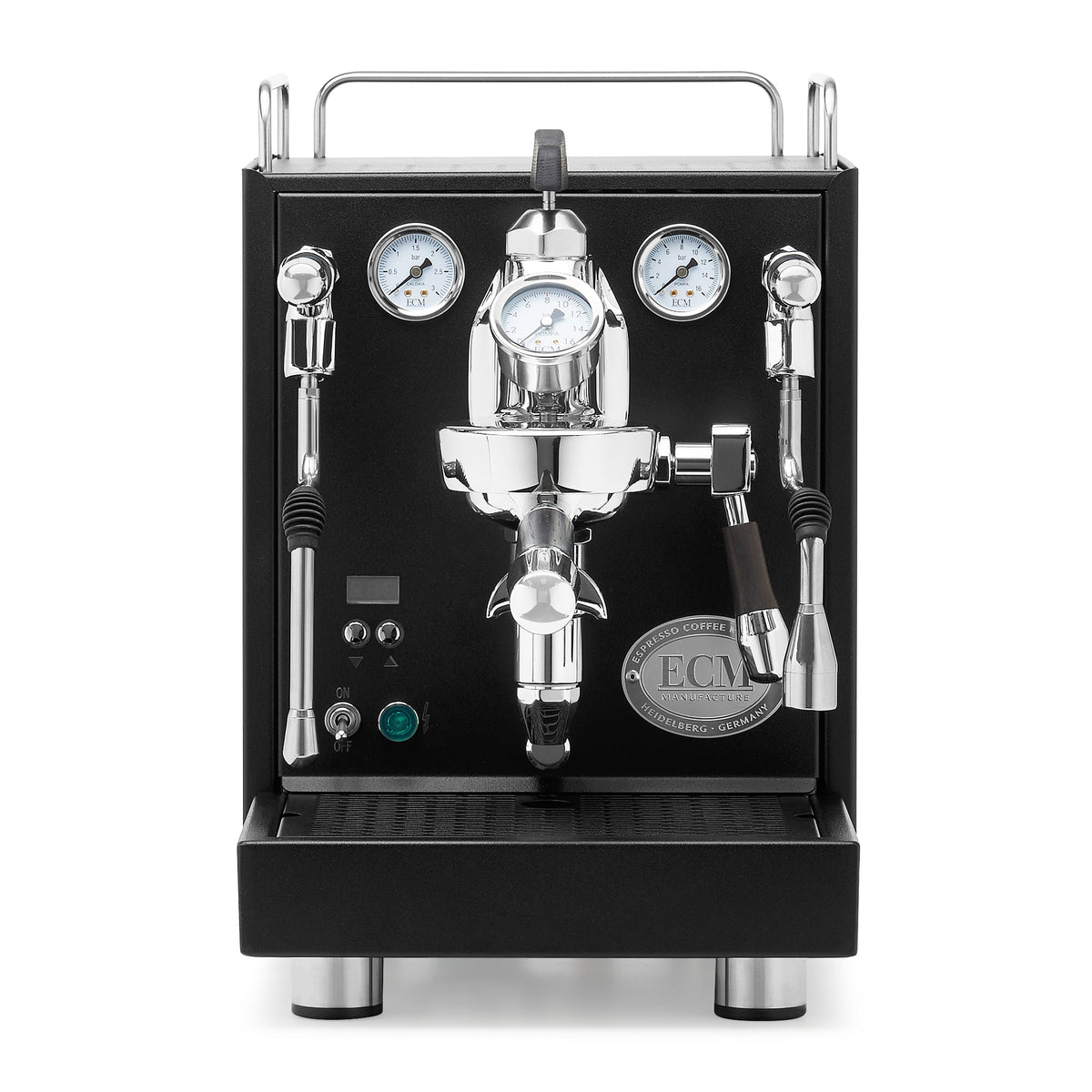

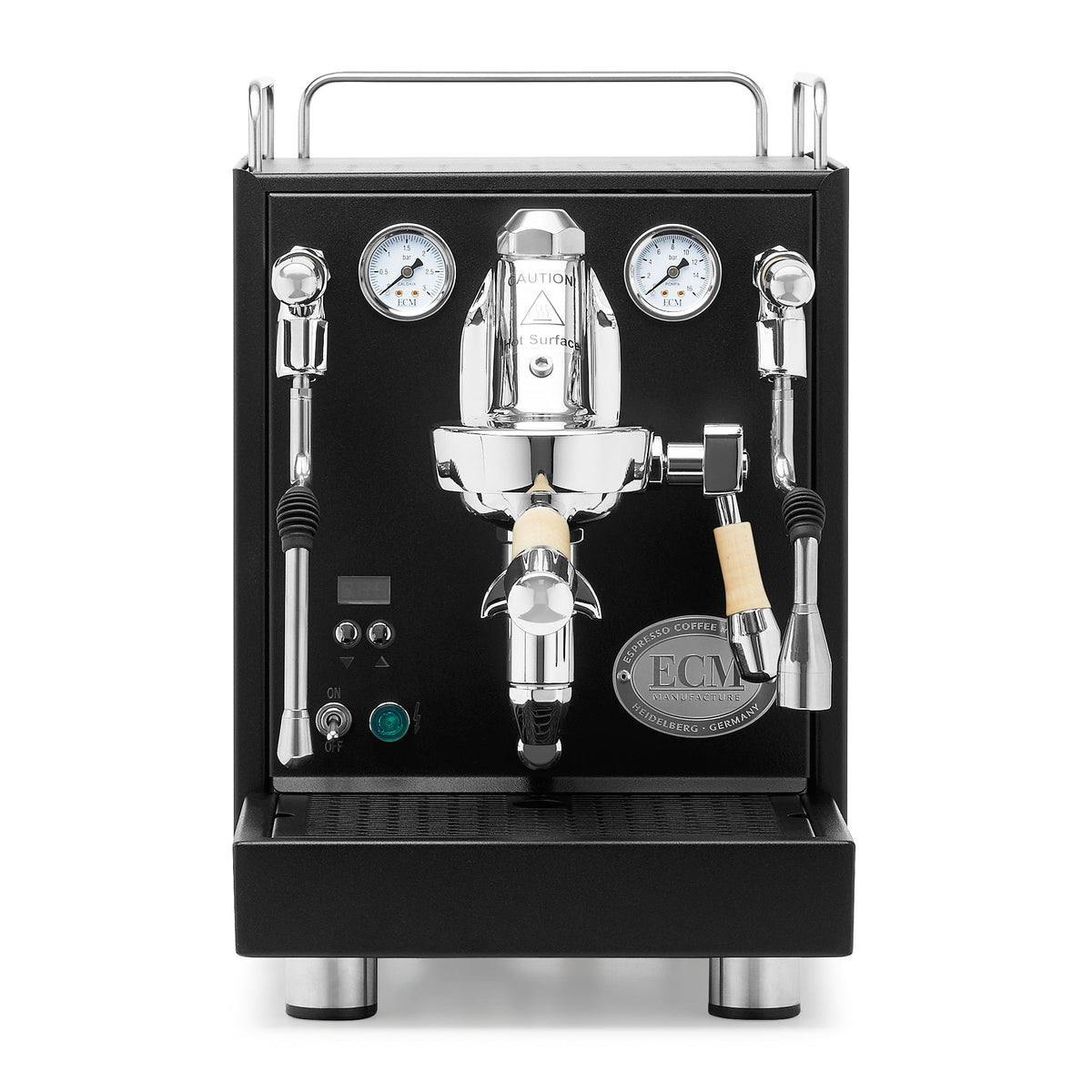

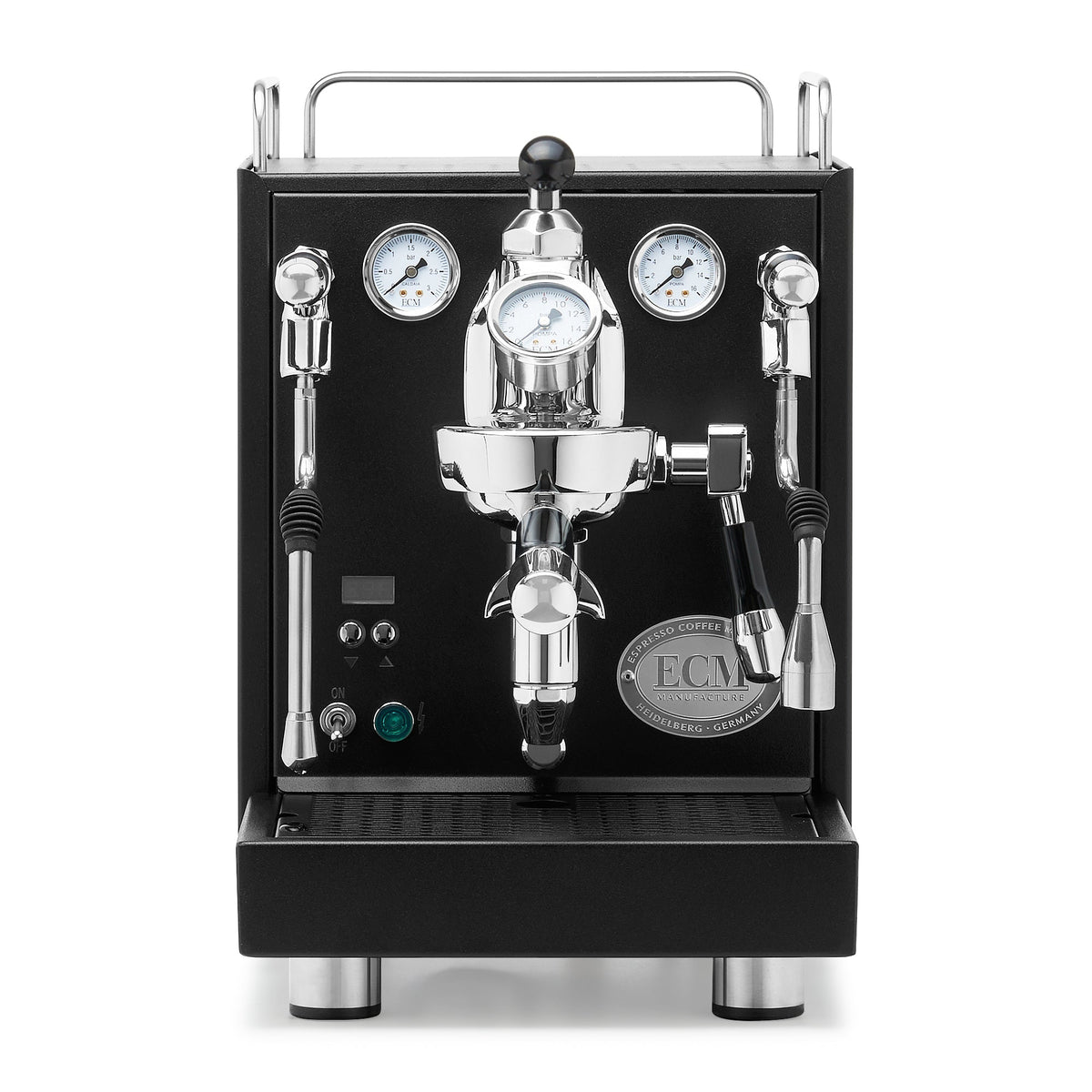

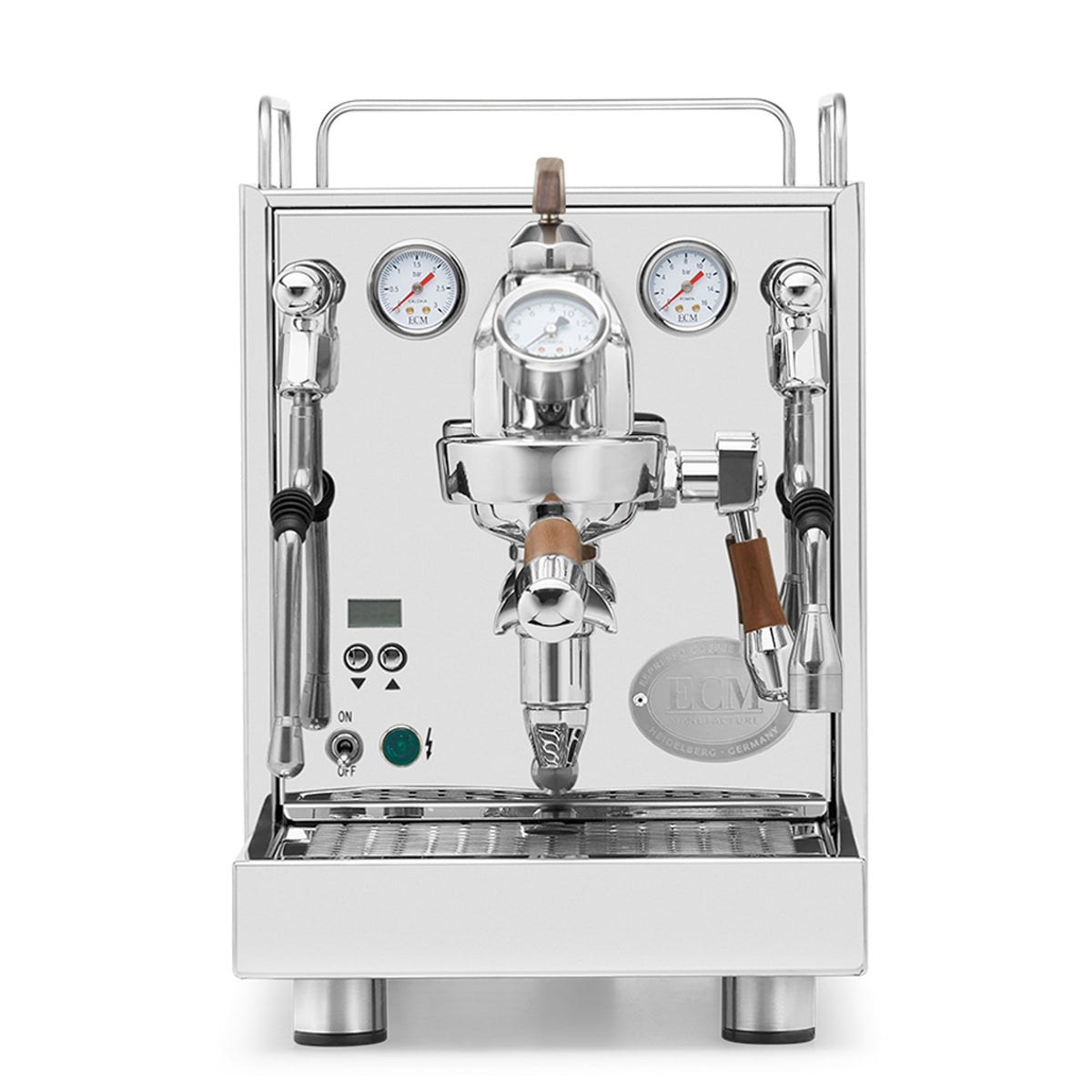

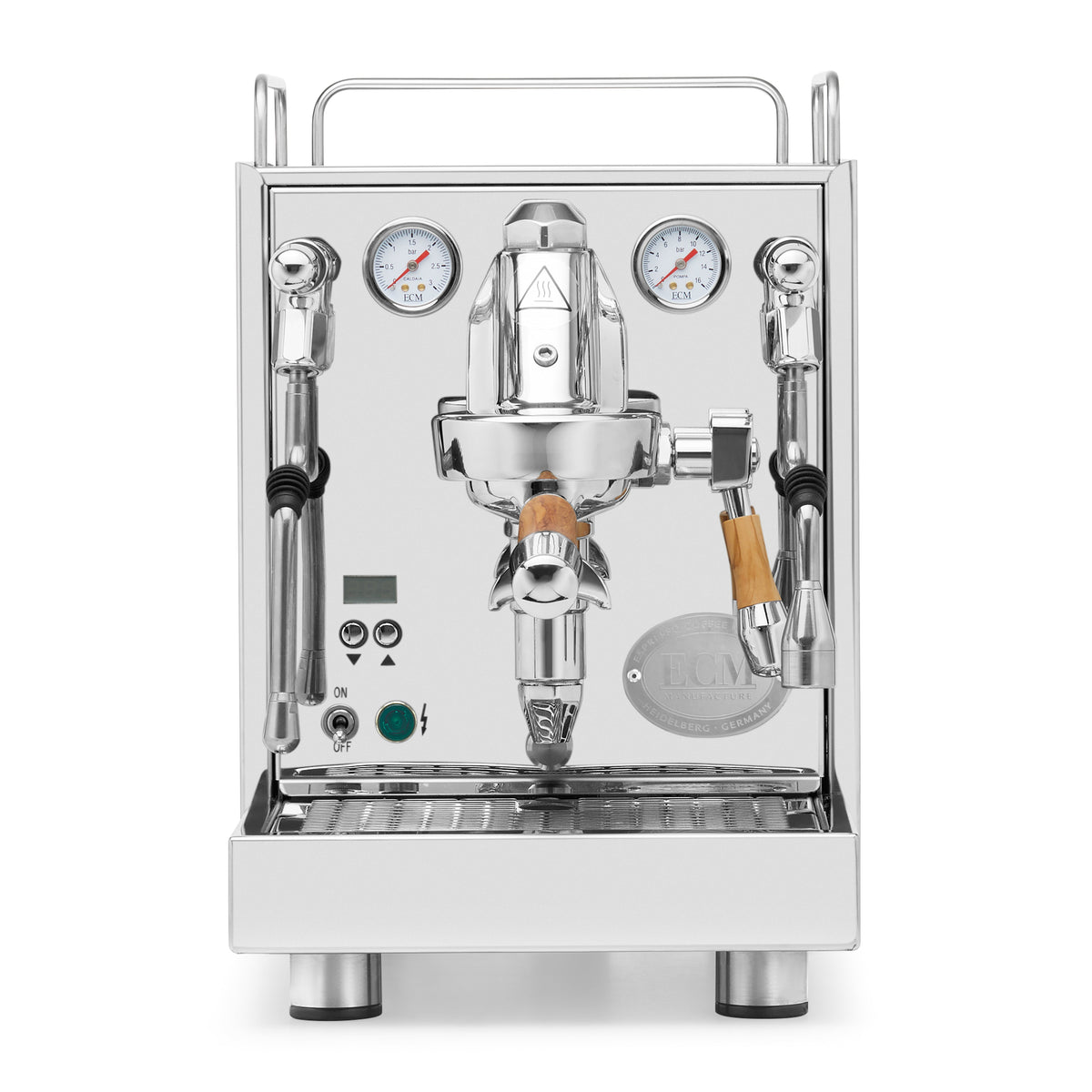

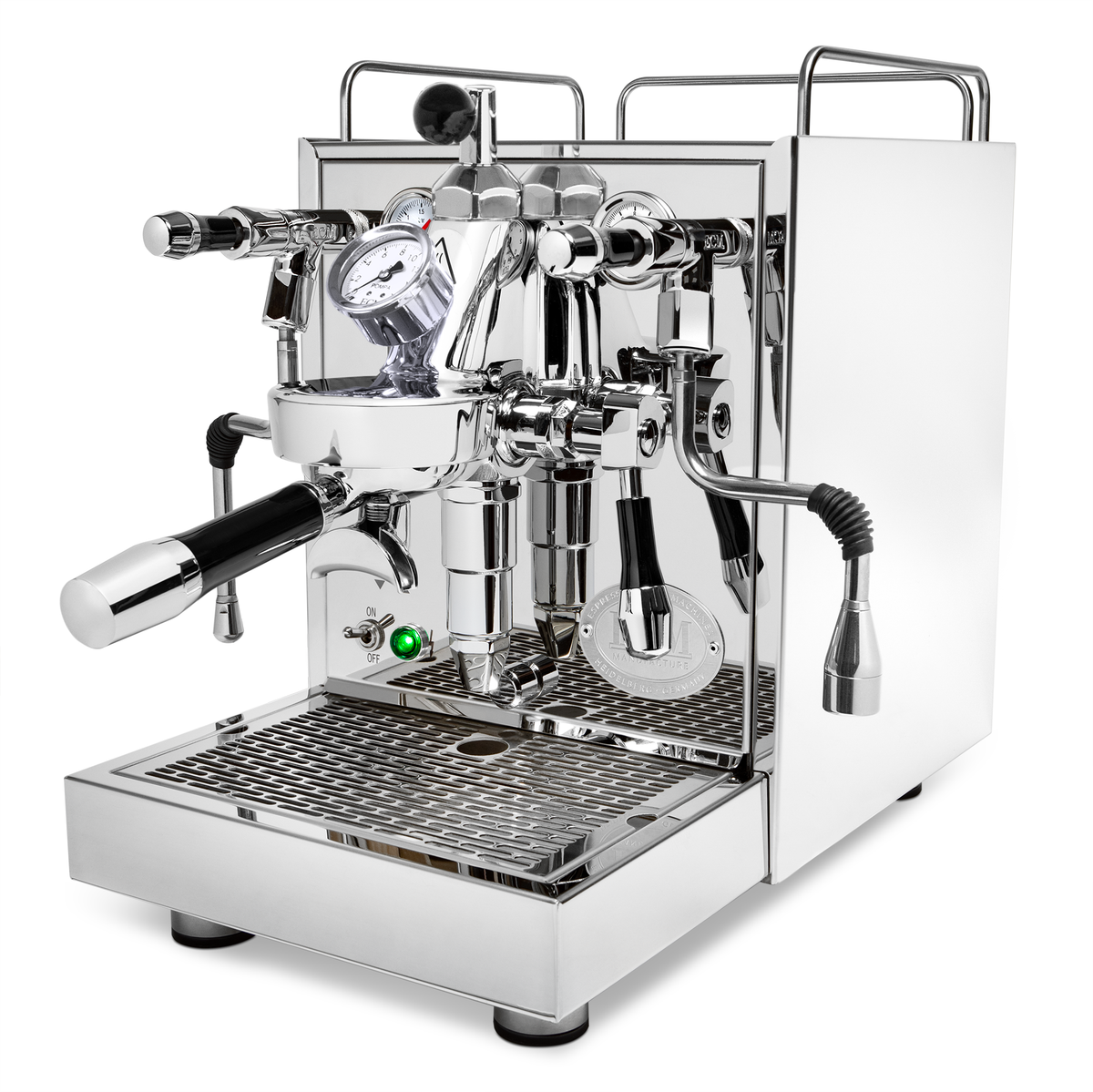

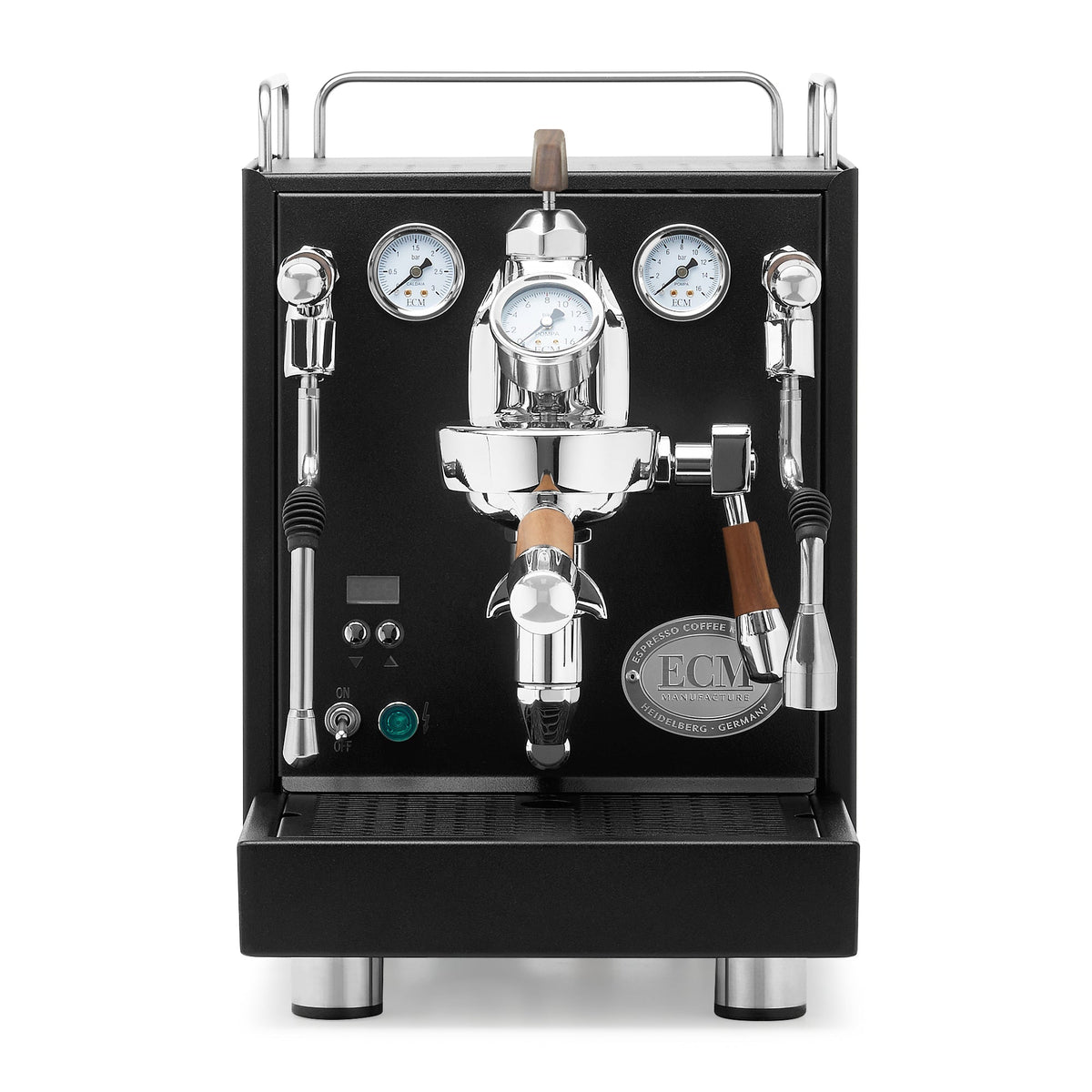

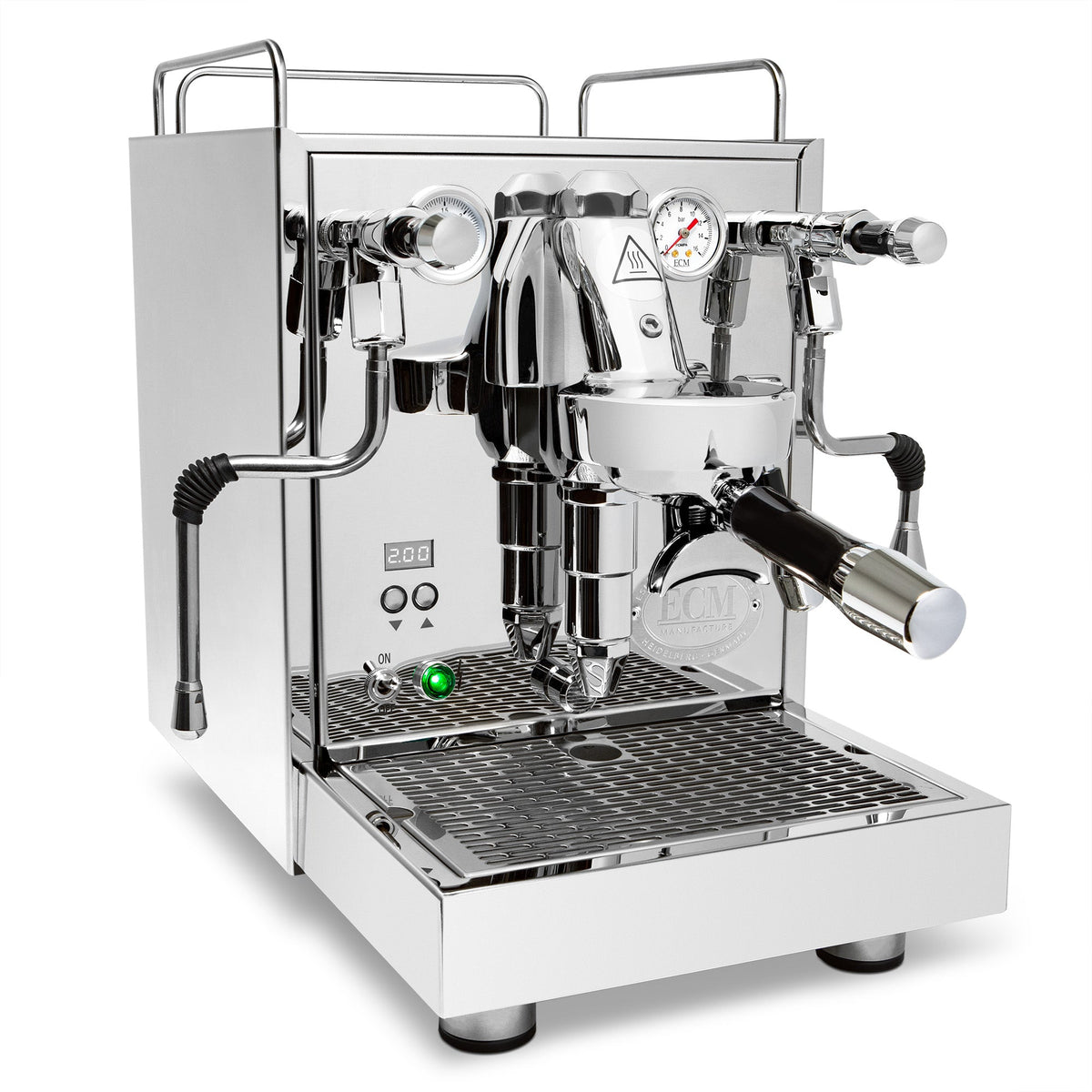

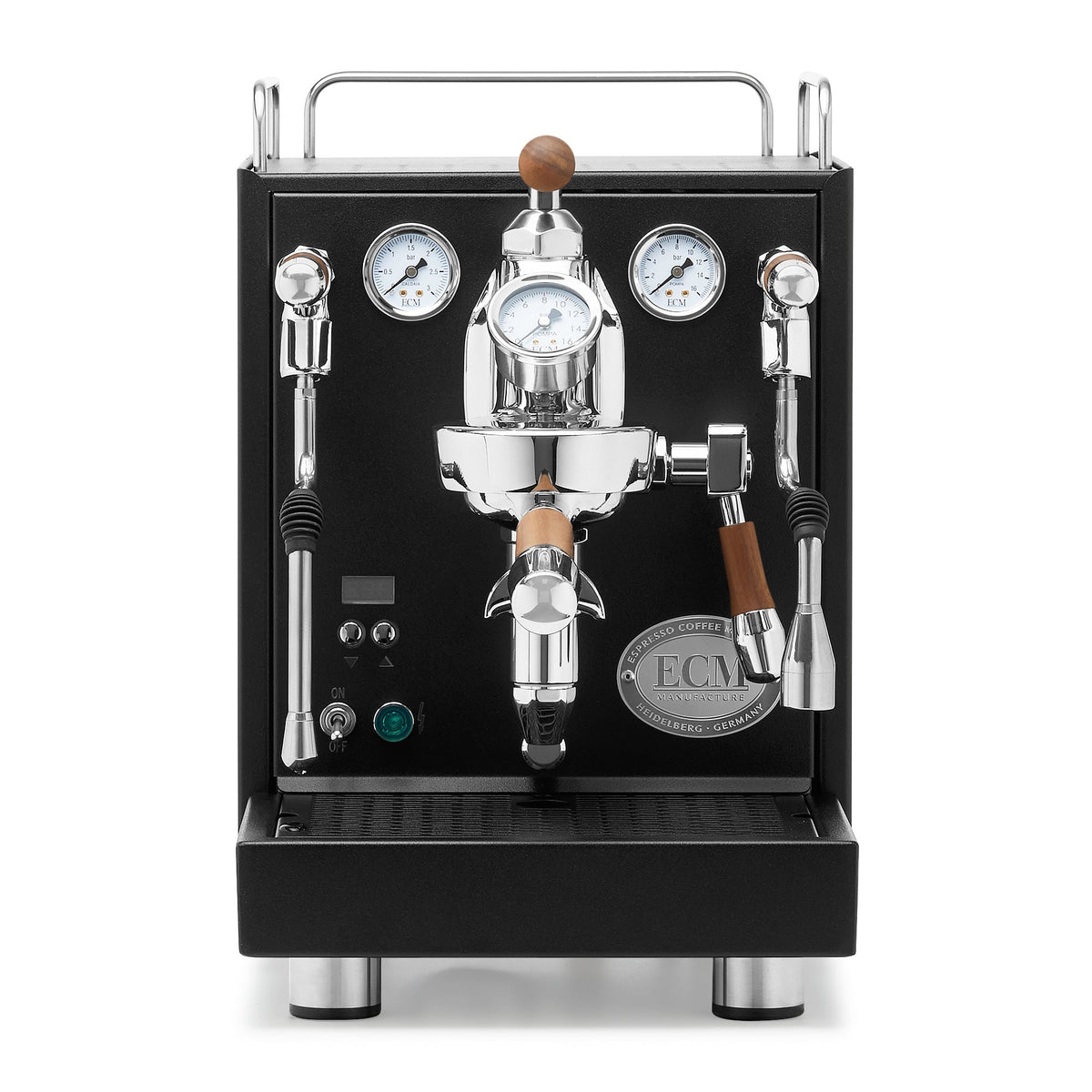

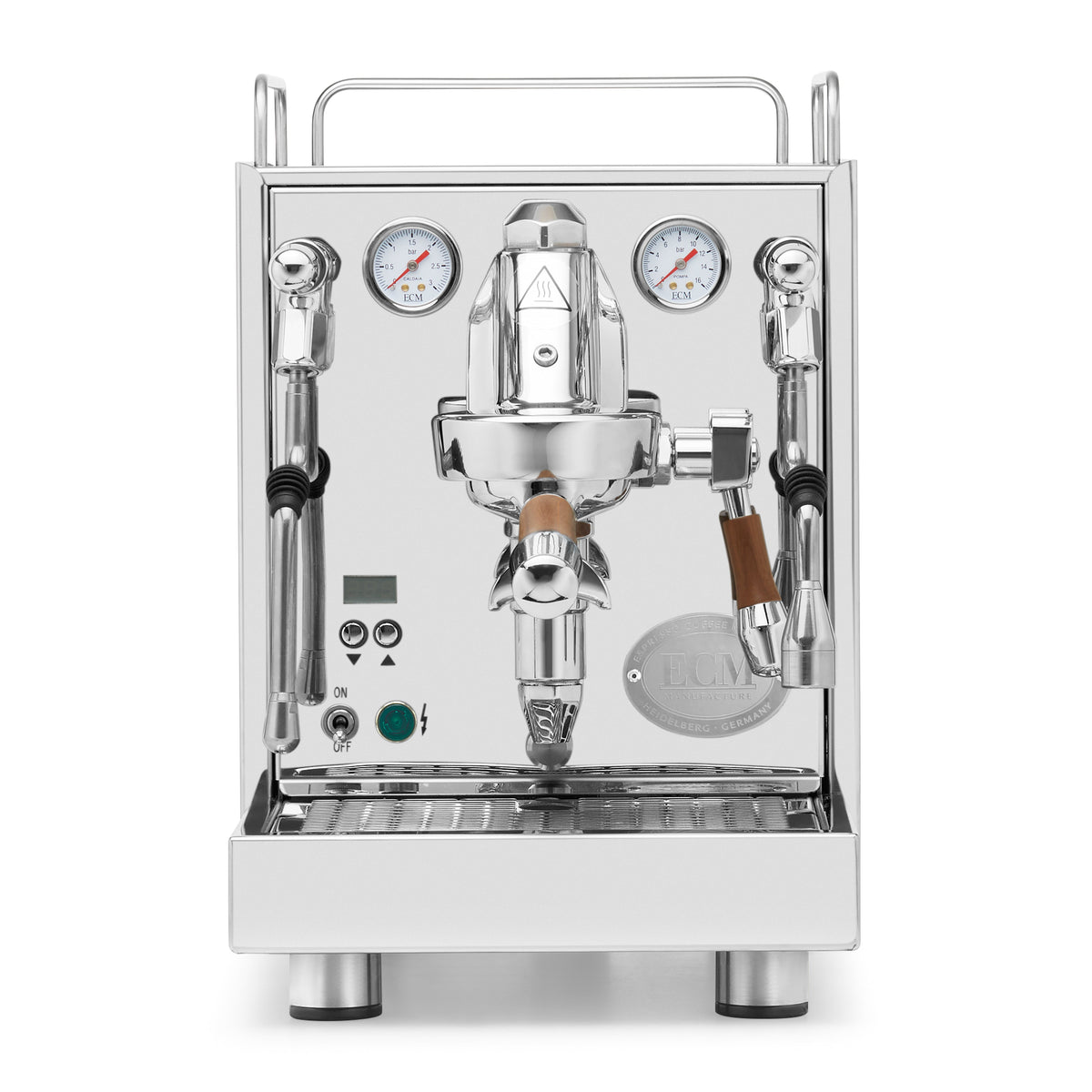

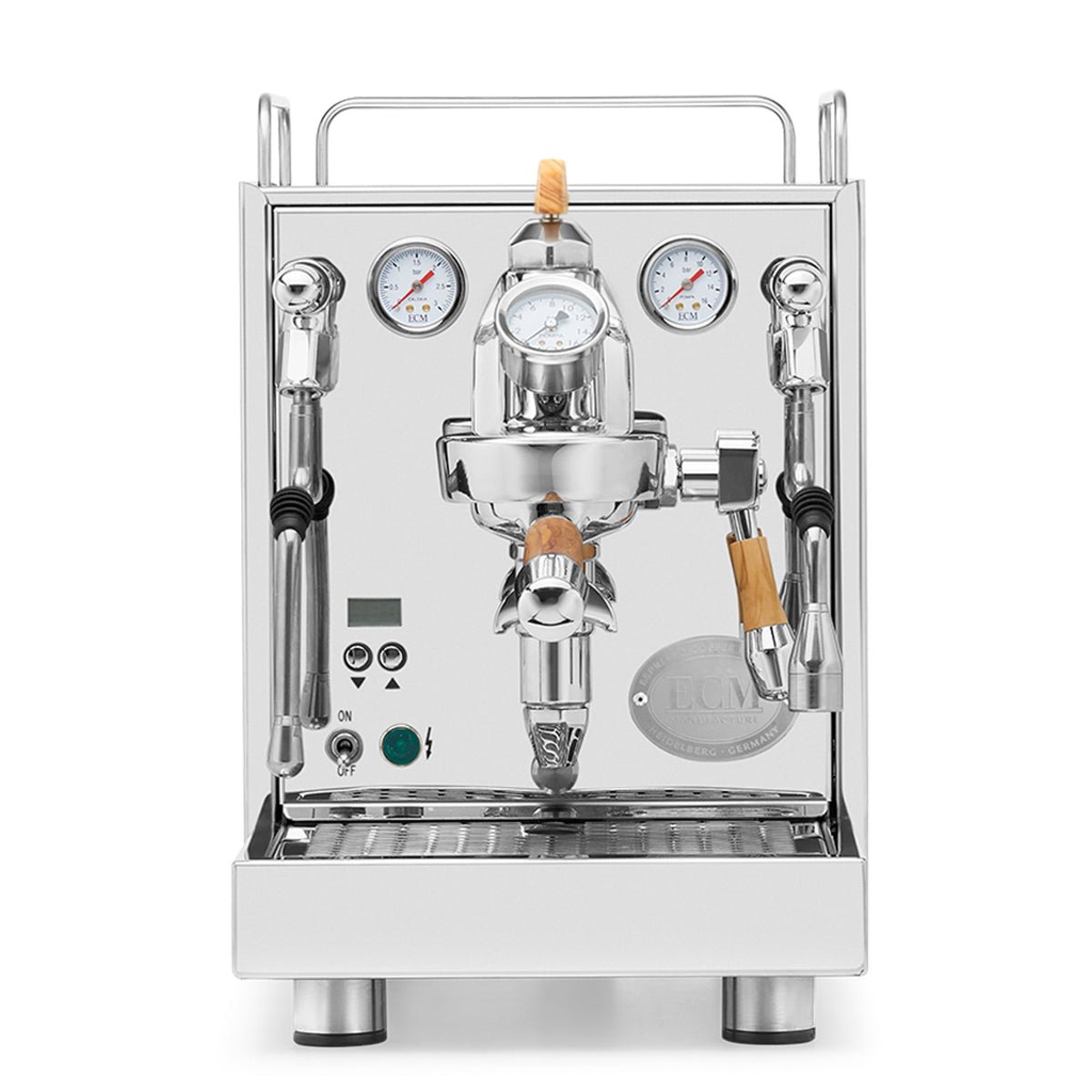

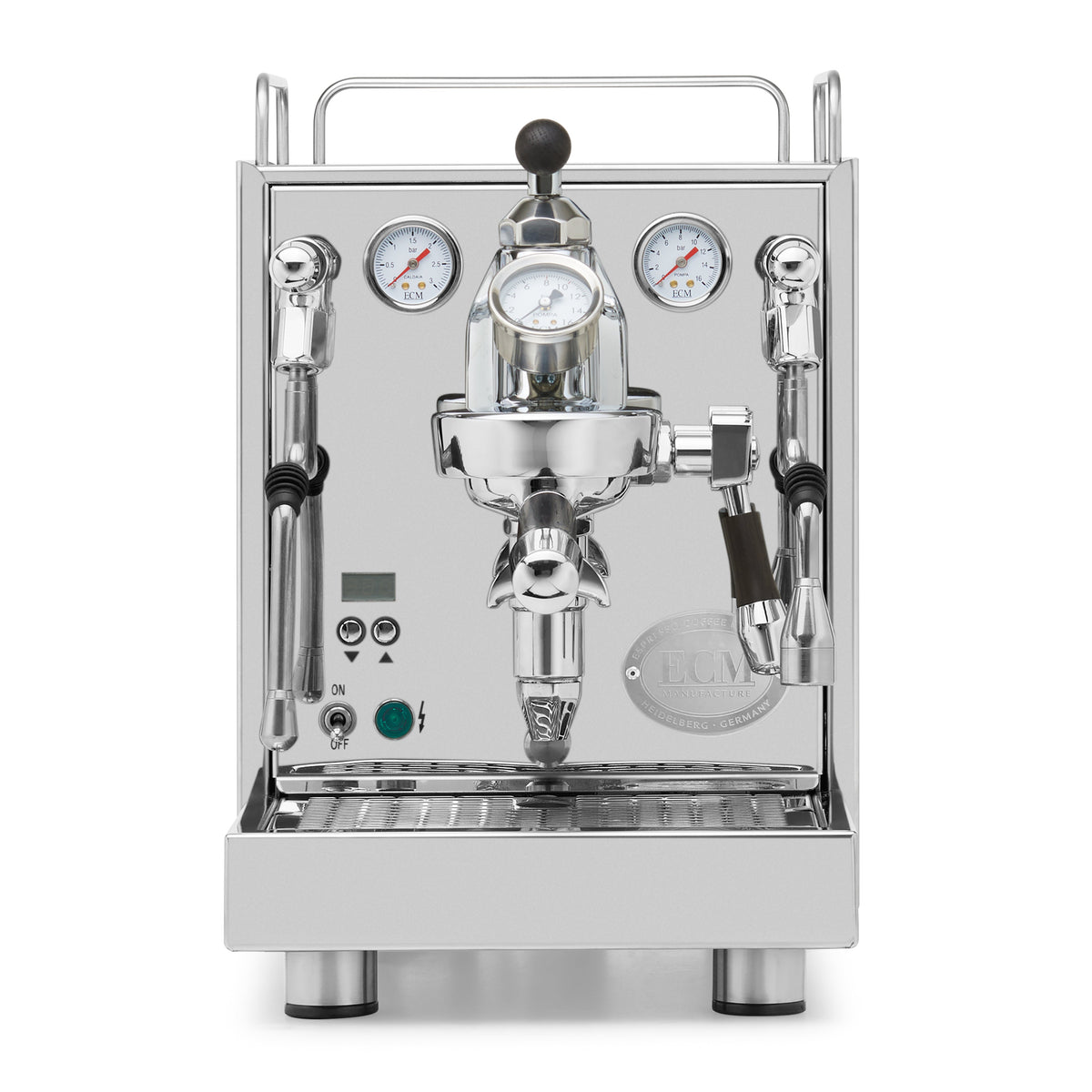

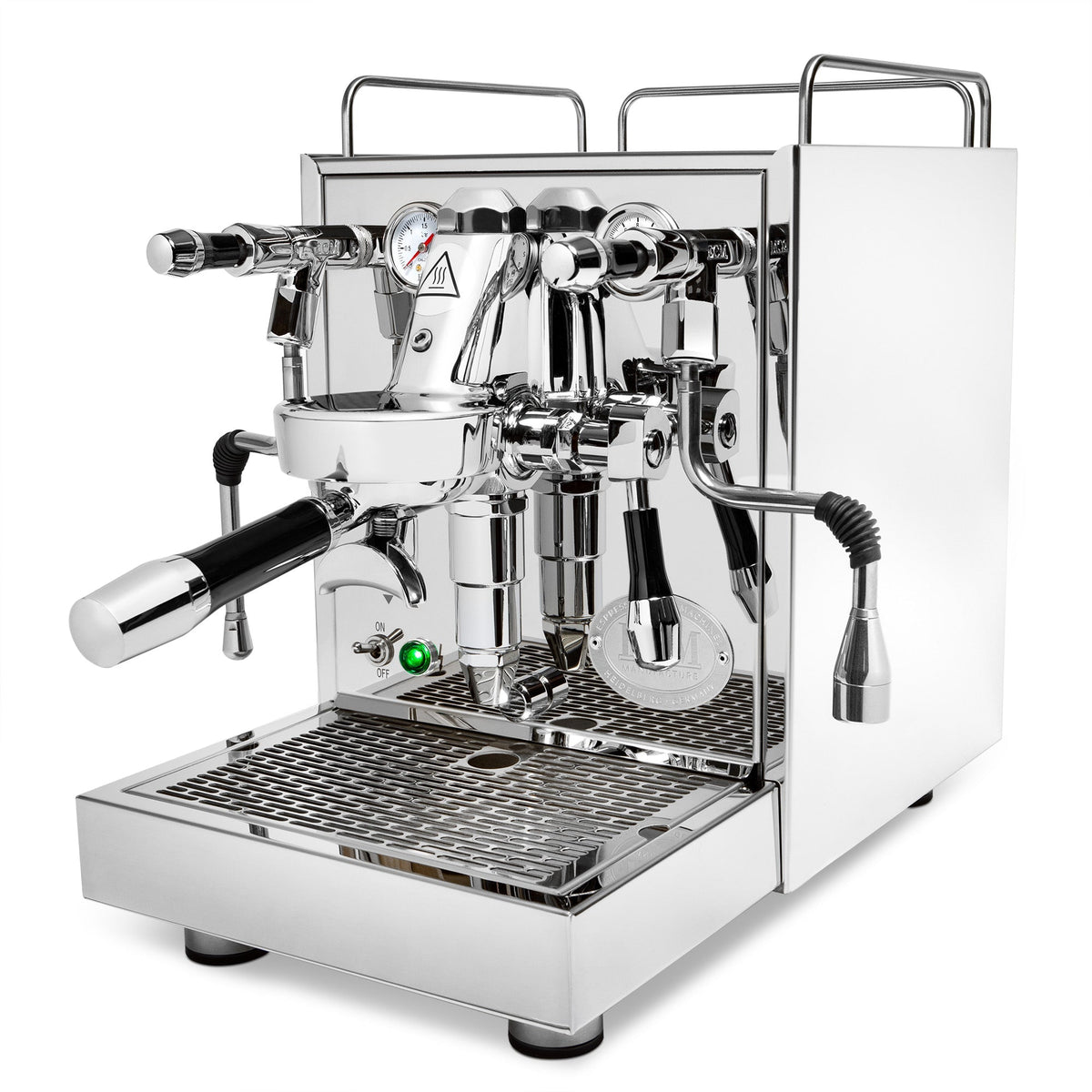

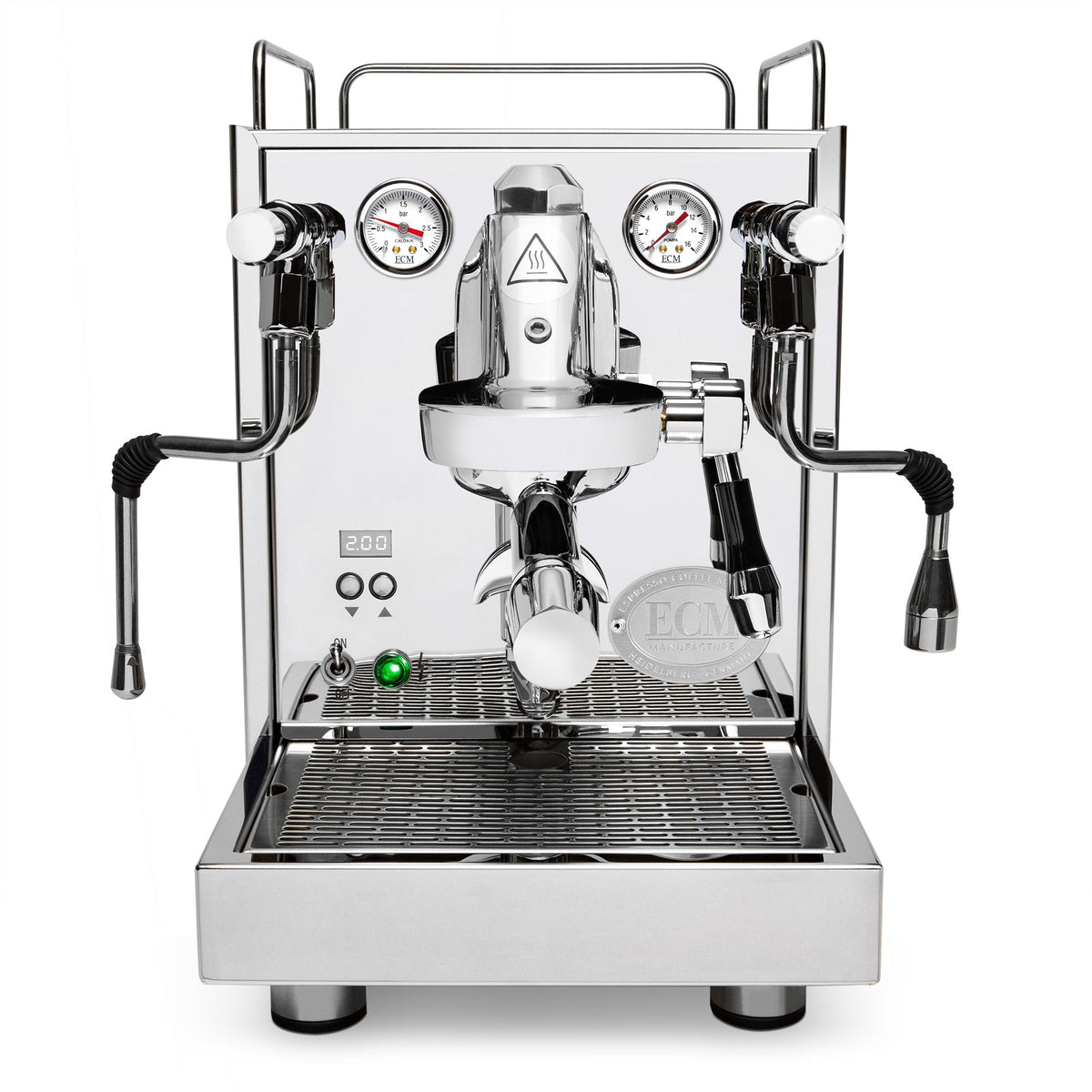

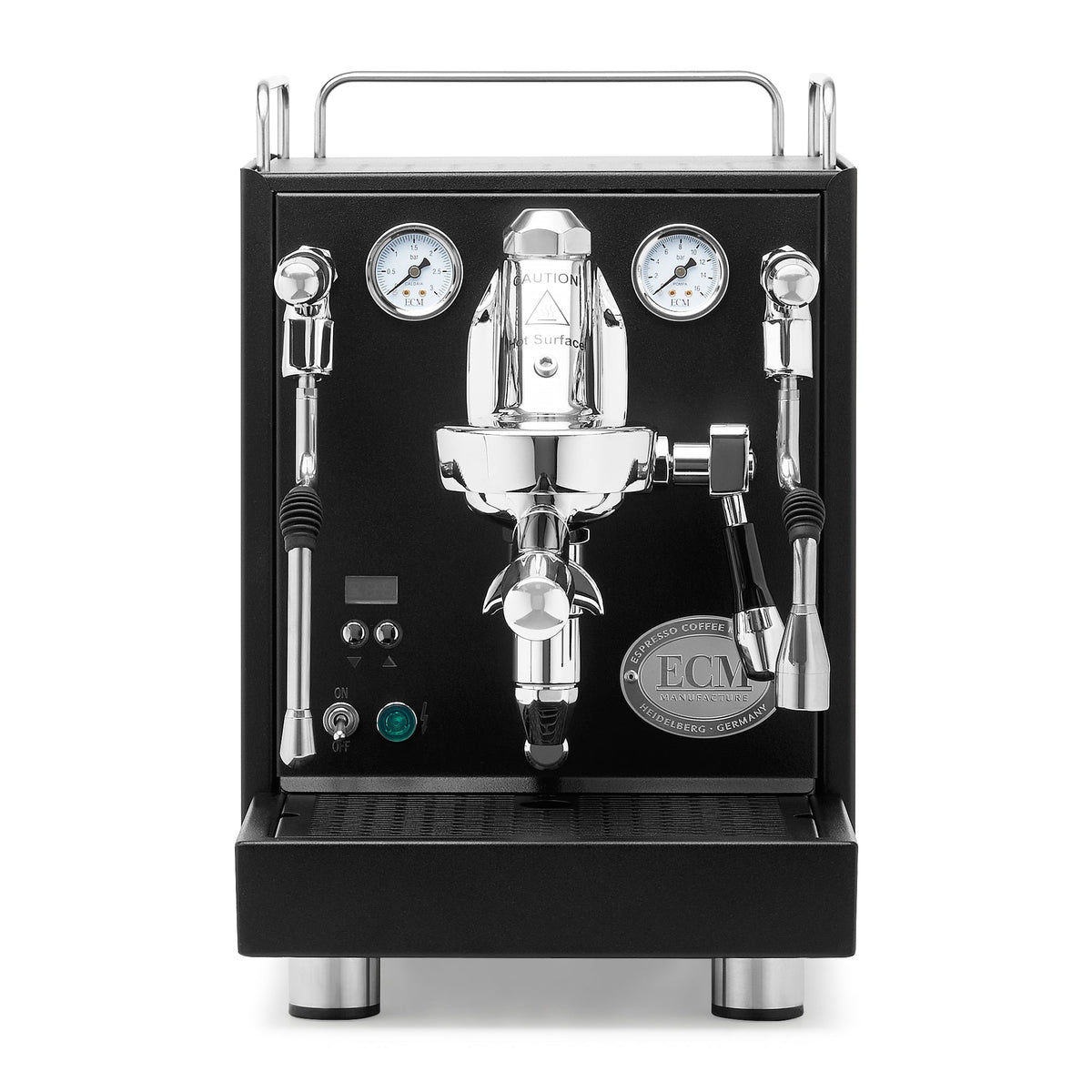

ECM Mechanika Max PID Heat-Exchange Espresso Machine
ECM

ECM Mechanika Max PID Heat-Exchange Espresso Machine

0 Reviews SKU: 68838
Reviews across Arventra Living

4.6/5 from 265 reviews

$2,029.72 USD $2,334.18 USD
Save $304.46 (13%)
In Stock
Key Features
  • PID-Controlled Heat Exchanger System – Combines the steaming power of a heat exchanger with advanced electronic temperature management.
  • E61 Brew Group – Commercial-style 58mm group designed for stable brewing and traditional lever operation.
  • Group Temperature Regulation – PID system can use brew-group temperature to regulate boiler heating for improved brew-temperature control.
  • Programmable Brew Temperature – Temperature can be adjusted in precise increments through the PID controller.

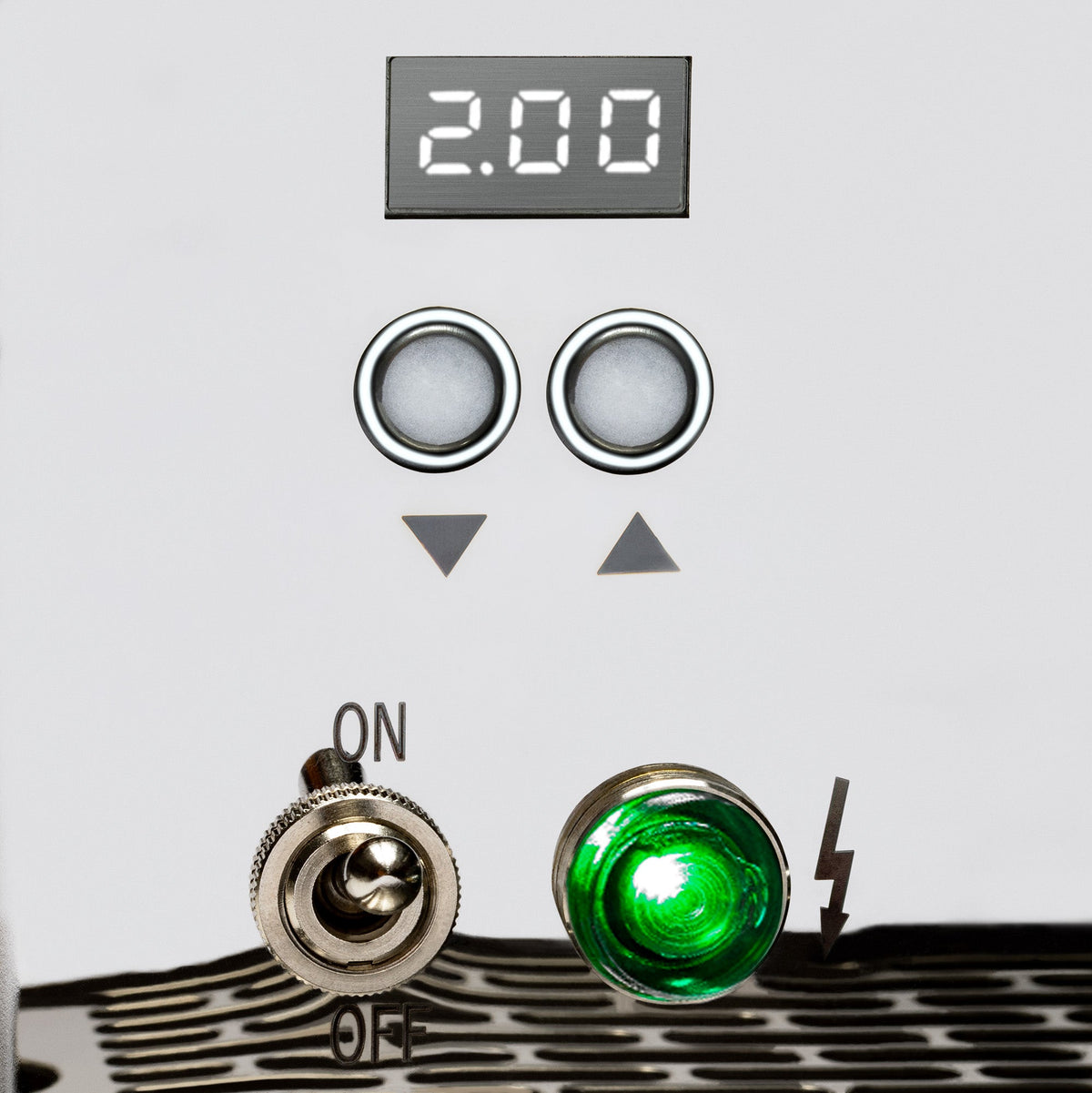

  • PID Shot Timer – The PID display automatically functions as a shot timer when the brew lever is engaged.
  • 1.9L Stainless Steel Boiler – Provides brewing and steam performance from a compact heat exchanger system.
  • Quiet Rotary Pump – Delivers quieter operation than traditional vibration-pump machines.
  • Reservoir or Direct-Plumb Operation – Use the removable 3L reservoir or connect the machine directly to a water supply.
  • Programmable On/Off Scheduling – Set up to two automatic on and off periods for weekday and weekend schedules.
  • Active and Passive Pre-Infusion Modes – Provides additional control over how the coffee puck is saturated before extraction.
  • Steam Boost Function – Provides additional steam performance when using the group-temperature control mode.
  • Cooling Flush Reminder – Can alert the user when a cooling flush is recommended before brewing.
  • Maintenance Reminders – Programmable alerts can indicate when backflushing or water-filter replacement is due.
  • ECO Mode – Automatically powers the machine down after a programmed period to reduce unnecessary energy use.

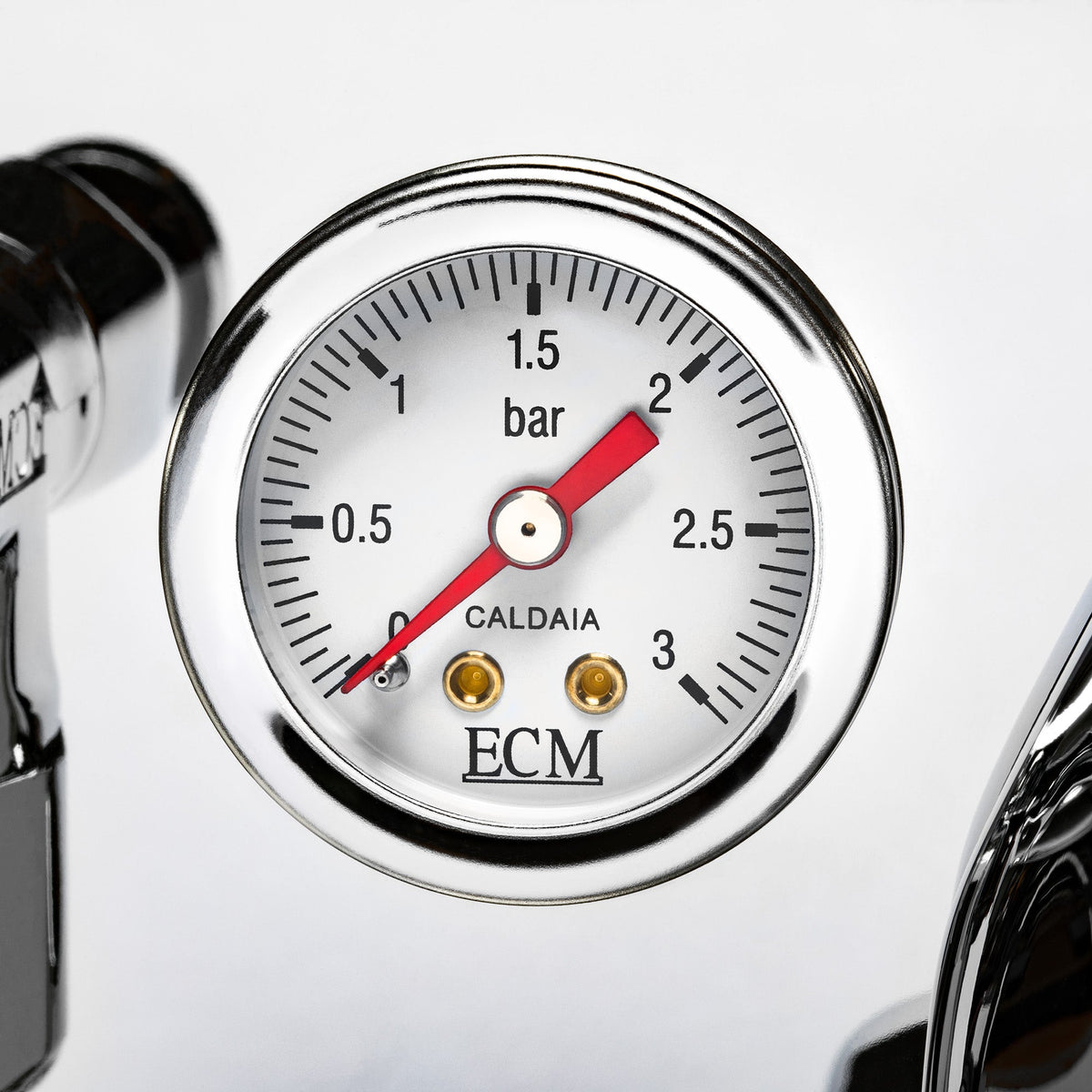

  • Dual Pressure Gauges – Separate brew/pump and steam pressure monitoring.

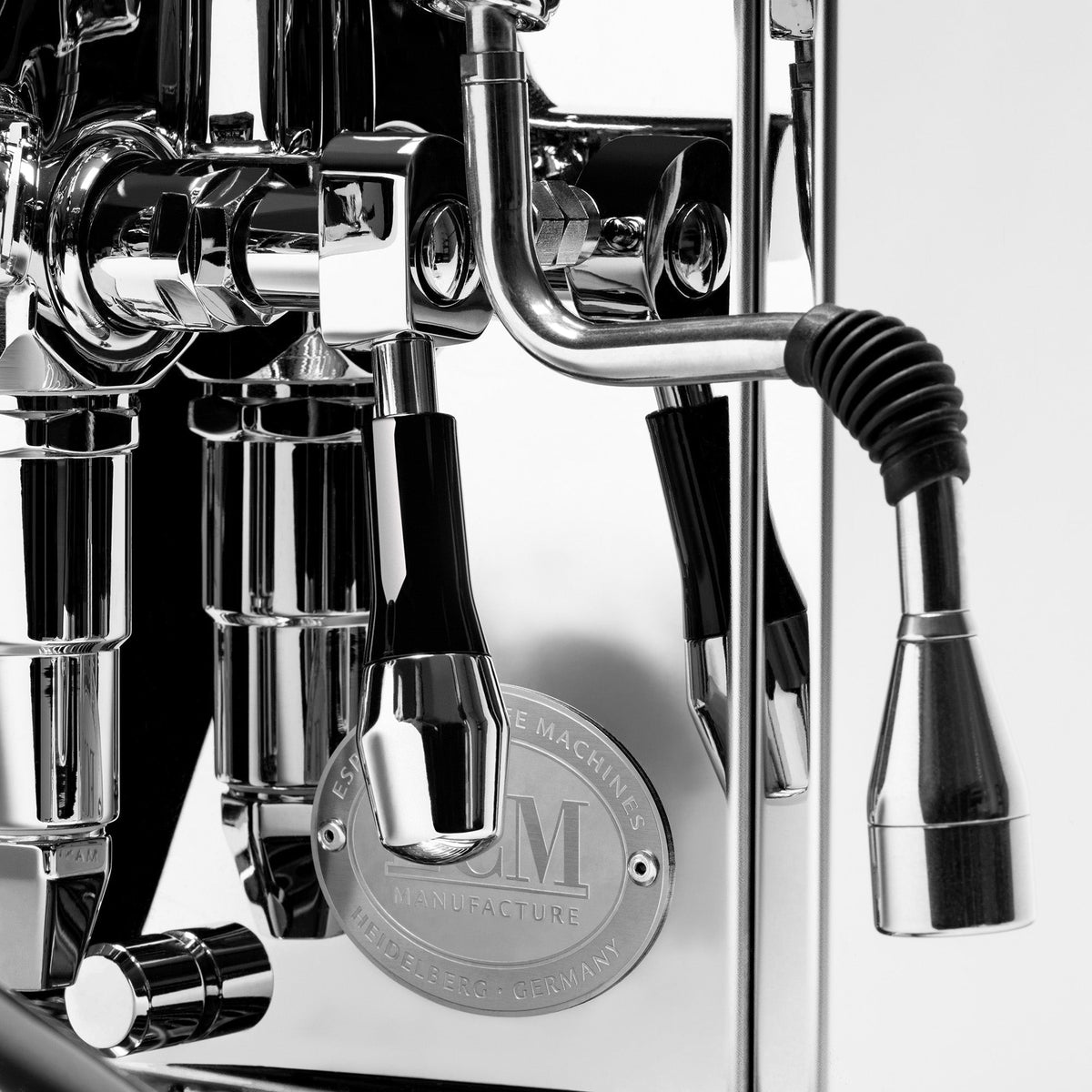

  • Spring-Loaded Joystick Valves – Convenient controls for steam and hot-water dispensing.

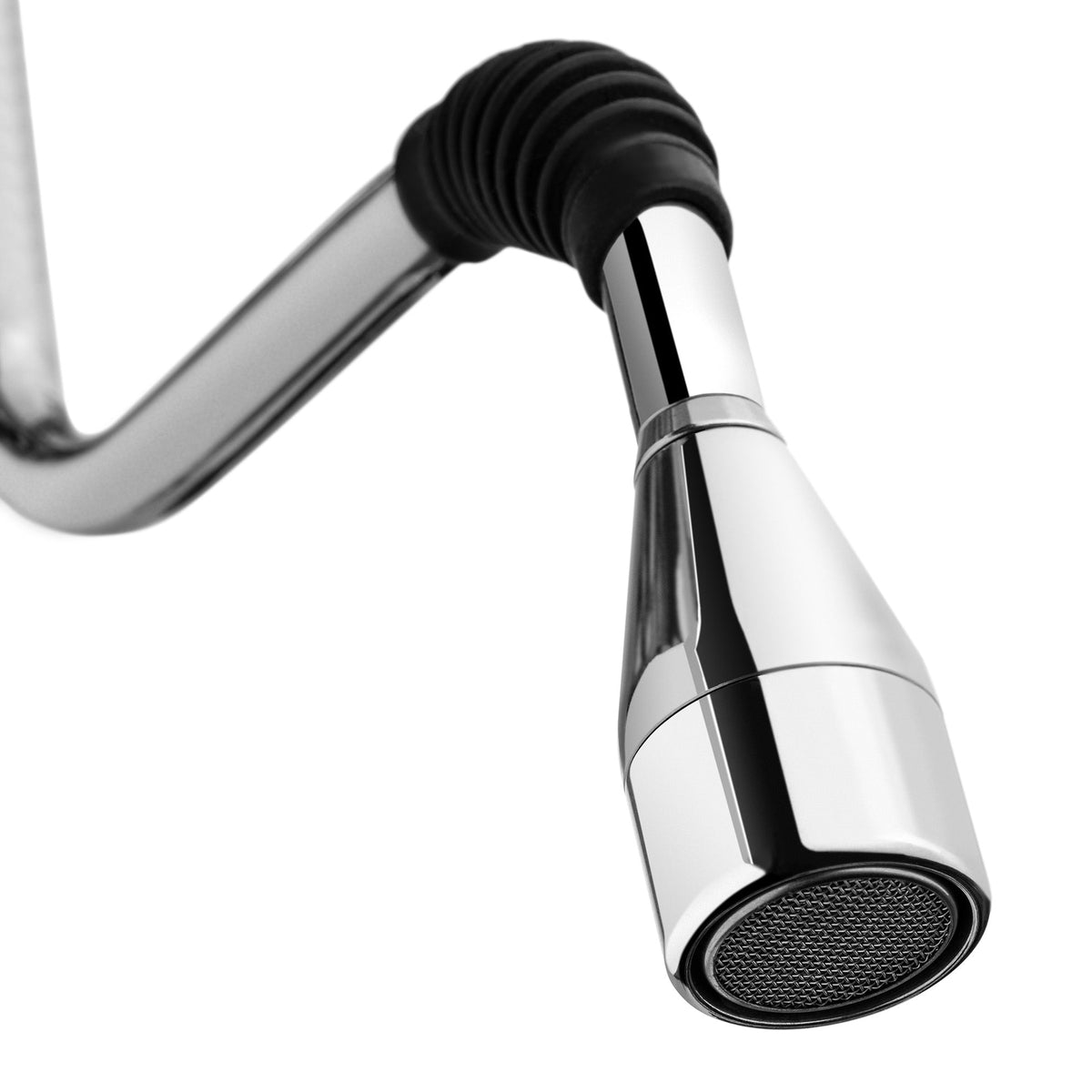

  • No-Burn Steam Wand – Fully articulated stainless steel commercial-style steam wand with a 2-hole steam tip.
  • Passively Heated Cup Warmer – Stainless steel top surface keeps cups conveniently stored and warmed.
  • Compact Footprint – Only 10.8 inches wide, making it well suited to smaller home espresso stations.
  • Polished Stainless Steel Housing – Classic ECM styling with durable stainless steel exterior construction.
  • 58mm Commercial-Style Portafilters – Includes both single- and double-spout portafilters.

ECM Mechanika Max PID Heat-Exchange Espresso Machine

Delivery & Returns From our store
to your door
  1. Order PlacedOrder received and confirmed
  2. ShipsDispatched within 1–2 business days
  3. In TransitTracking shared once your order ships
  4. DeliveredTypical total delivery window: 5–7 business days
  5. 30-Day ReturnsEligible items can be returned within 30 days
Estimated timing; see policies for conditions. Shipping policy Return policy
Product description

Product Overview

ECM Mechanika Max PID Heat-Exchange Espresso Machine
Product media

Product Media Story

ECM Mechanika Max PID Heat-Exchange Espresso Machine
ECM Mechanika Max PID Heat-Exchange Espresso Machine
ECM Mechanika Max PID Heat-Exchange Espresso Machine
ECM Mechanika Max PID Heat-Exchange Espresso Machine
Product details

Specifications

Product Specifications

General

  • Brand: ECM
  • Product Name: Mechanika MAX Espresso Machine
  • SKU: 68838
  • Product Type: Heat Exchanger Espresso Machine
  • Recommended Application: Home / Residential
  • Brew Group: E61
  • Filter Diameter: 58 mm
  • Display Type: PID
  • Control Type: Brew Lever and PID
  • NSF Certified: No

Boiler & Brewing System

  • Boiler Configuration: Heat Exchanger
  • Boiler Capacity: 1.9 L
  • Boiler Material: Stainless Steel
  • Boiler Orientation: Vertical
  • Boiler Insulation: Yes
  • Boiler Heater Location: Internal
  • Boiler Auto-Fill: Yes
  • PID Controlled Boiler: Yes
  • Programmable Brew Temperature: Yes
  • Programmable Steam Temperature: Yes
  • Shot Timer: Integrated into PID Display
  • Pre-Infusion: Adjustable
  • Pre-Infusion Modes: Active and Passive
  • Cooling Flush Reminder: Yes

Pump & Water System

  • Pump Type: Rotary
  • Water Source: Removable Reservoir or Direct Plumbing
  • Water Reservoir Capacity: 3 L
  • Water Reservoir Access: Top
  • Water Reservoir Material: Plastic
  • Removable Reservoir: Yes
  • Maximum Incoming Water Pressure: 2 Bar

Programmable Features

  • Programmable On/Off Times
  • Weekday and Weekend Scheduling
  • Up to Two On/Off Periods
  • Programmable Brew Temperature
  • Programmable Steam Temperature
  • ECO Mode
  • Backflush Reminder
  • Water Filter Replacement Reminder
  • Pre-Infusion Modes
  • Group Temperature Regulation
  • PID Shot Timer

Steam System

  • Steam Wand: Commercial Style
  • Steam Wand Material: Stainless Steel
  • Steam Wand Movement: Fully Articulated
  • Steam Wand Feature: No-Burn
  • Steam Tip: 2-Hole
  • Steam Control: Spring-Loaded Joystick

Portafilter System

  • Portafilter Diameter: 58 mm
  • Portafilter Type: Commercial Style
  • Portafilter Material: Chrome-Plated Brass
  • Portafilter Handle Material: Plastic
  • Number of Portafilters Included: 2
  • Included Portafilter Types: Single Spout and Double Spout
  • Included Baskets: Single, Double and Backflush
  • Bottomless Portafilter: Sold Separately
  • Ground / E.S.E. Pod / Capsule Compatibility: No

Pressure Gauges

  • Brew/Pump Pressure Gauge: Yes
  • Steam Pressure Gauge: Yes

Construction

  • Housing Material: Stainless Steel
  • Housing Finish: Polished Stainless
  • Frame Material: Steel

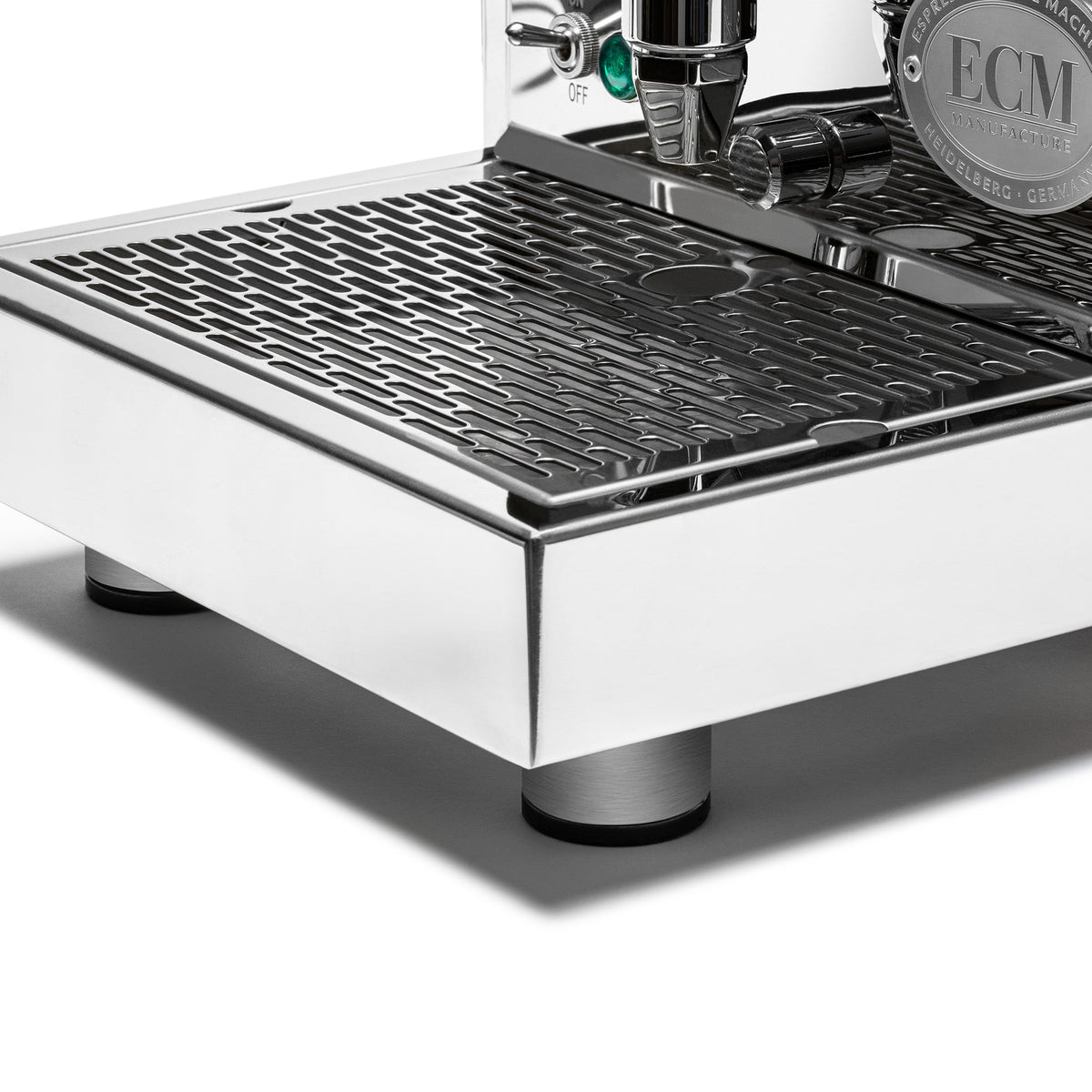

  • Drip Tray Material: Stainless Steel
  • Drip Tray Cover Material: Stainless Steel
  • Removable Drip Tray: Yes
  • Drip Tray Capacity: 35 fl oz
  • Cup Warmer: Passively Heated
  • Cup Warmer Material: Stainless Steel
  • Cup Warmer Dimensions: 10.5 × 9.5 in

Dimensions & Weight

  • Width: 10.8 in
  • Depth: 17.5 in
  • Height: 16 in
  • Weight: 51.8 lb

Electrical

  • Voltage: 110/120V

Maintenance

  • Maintenance Alerts: Yes
  • Recommended Descaler: Durgol Swiss
  • Recommended Water Filters: BWT Bestmax Premium / BWT Bestsave M

Warranty

  • Manufacturer's Warranty Period: 3 Years Parts and Labor

In the box

What's Included

1 × ECM Mechanika MAX Espresso Machine

1 × ECM Single-Spout Portafilter

1 × ECM Double-Spout Portafilter

1 × 7g Single-Shot Filter Basket

1 × 14g Double-Shot Filter Basket

1 × Backflush Disc

1 × 58mm Tamper with Stainless Steel Base

1 × Metal Water-Line Hose – 1/8" / 3/8" BSPP

1 × Brew Group Cleaning Brush

1 × User Manual
