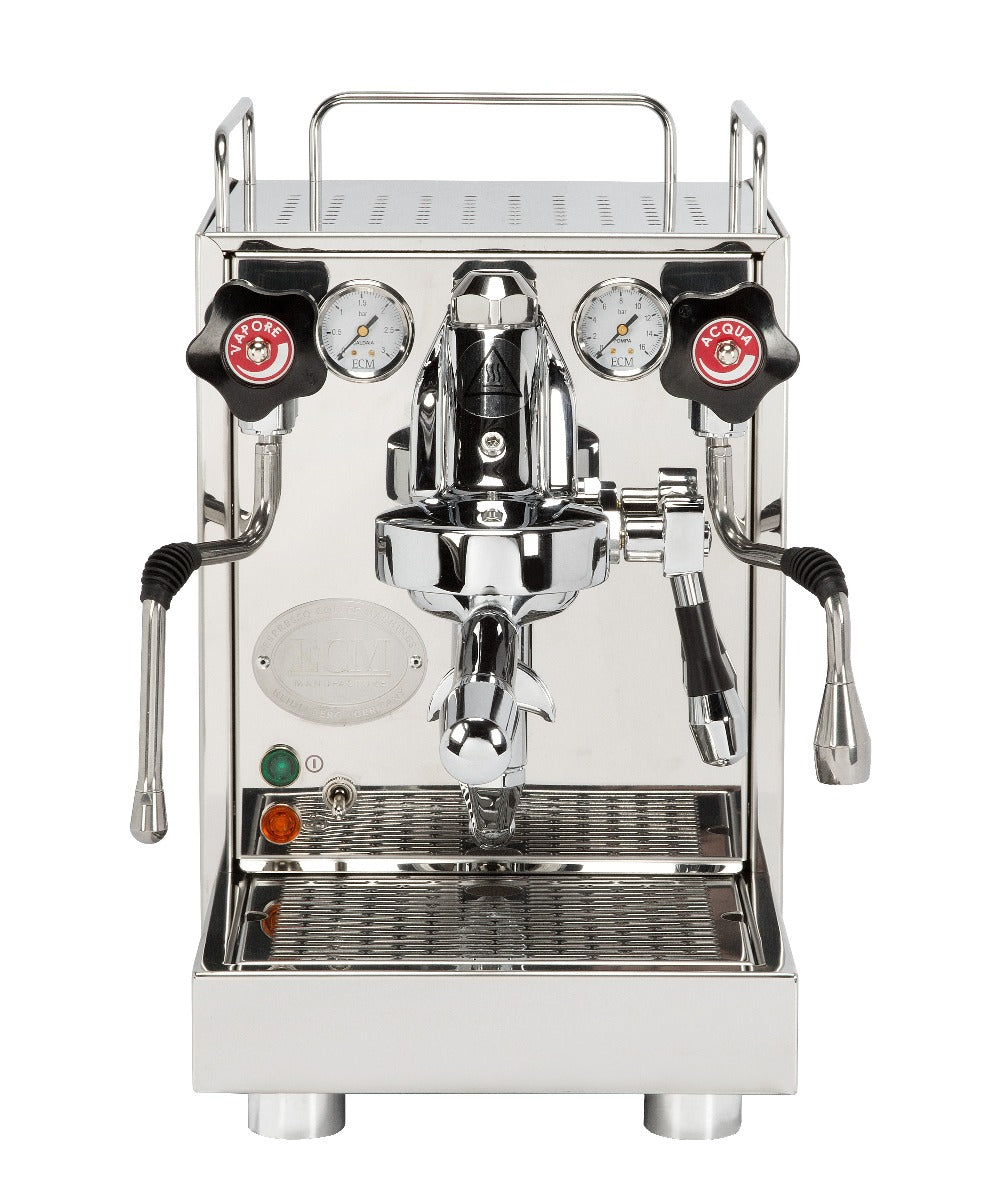

ECM Mechanika VI Slim Heat-Exchange Espresso Machine
ECM

ECM Mechanika VI Slim Heat-Exchange Espresso Machine

0 Reviews SKU: 40368
Reviews across Arventra Living

4.6/5 from 265 reviews

$1,713.85 USD $1,970.93 USD
Save $257.08 (13%)
In Stock
Key Features
  • Compact heat exchanger espresso machine

  • Just 9.8 inches wide

  • Large 2.2 L / 74.4 fl oz stainless steel boiler

  • Brew and steam simultaneously

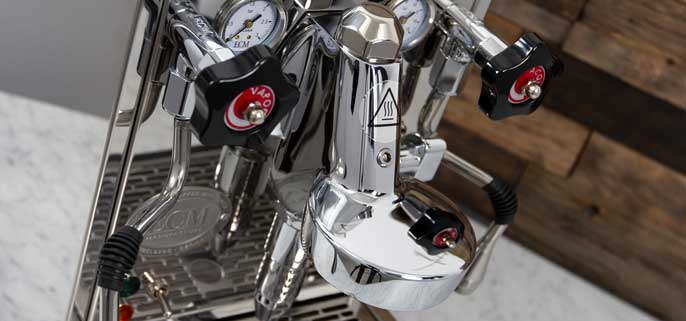

  • Custom ECM E61 brew group

  • Thermosyphon-heated group for improved temperature stability

  • Integrated pre-infusion chamber

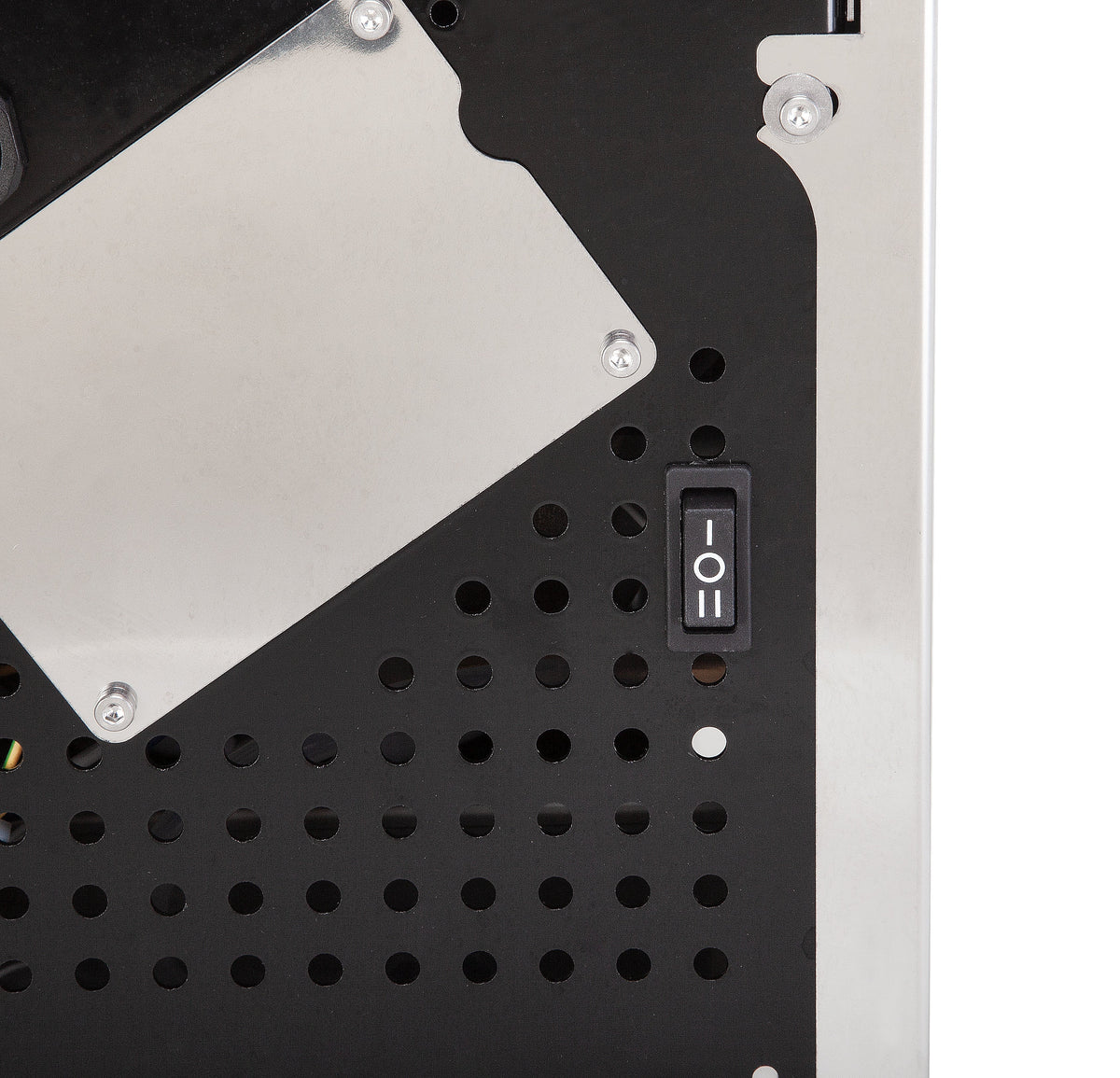

  • Three-position temperature control switch

  • Three preset boiler temperature selections

  • Pre-infusion can be turned on or off

  • Programmable ECO mode

  • PID-assisted boiler temperature management

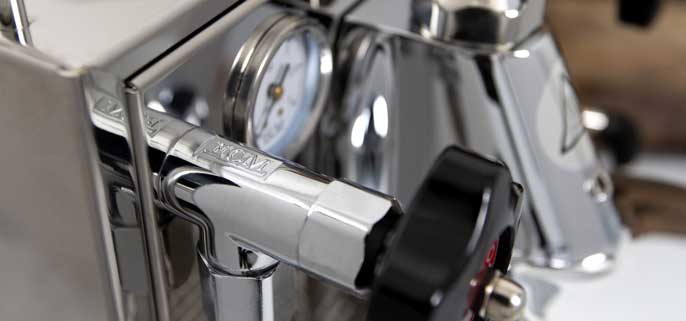

  • Dual pressure gauges

  • Separate brew circuit and steam boiler pressure monitoring

  • Adjustable brew pressure

  • Accessible OPV beneath the reservoir lid

  • Powerful 1400 W heating element

  • Vibration pump

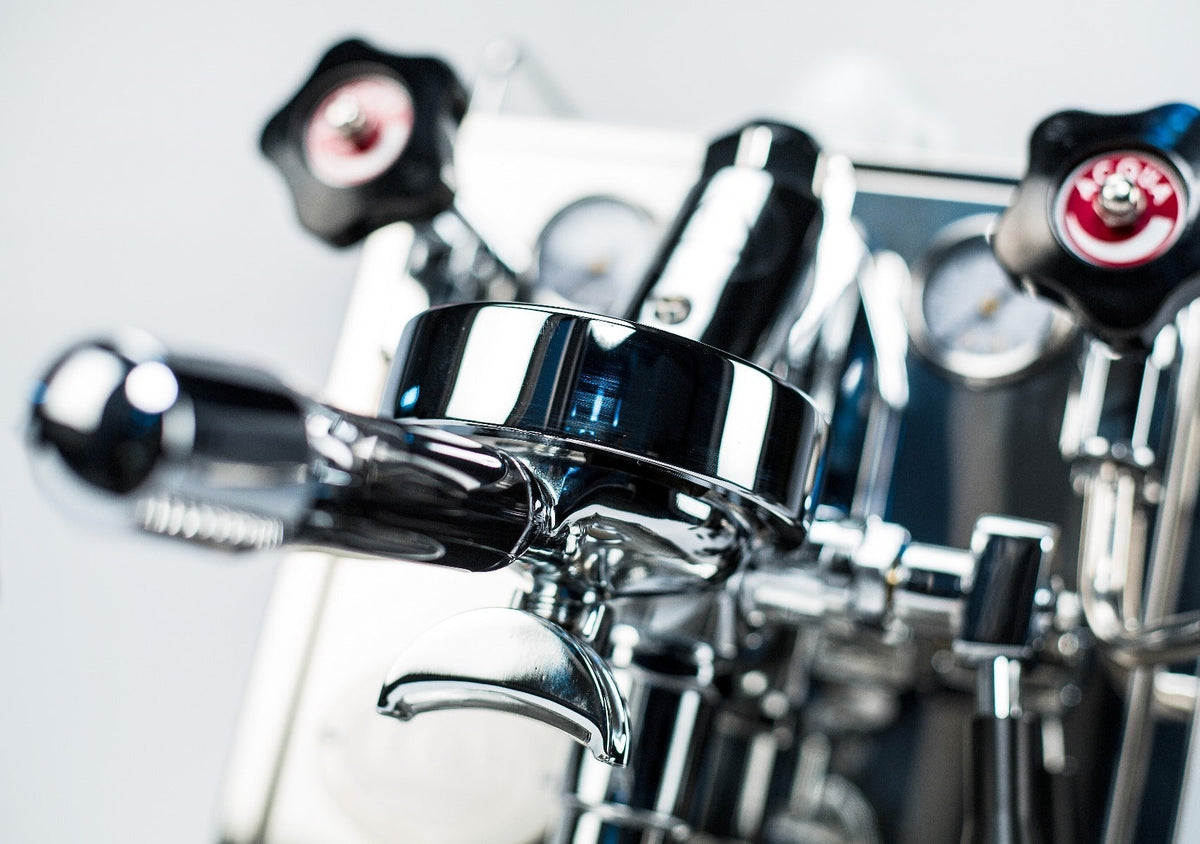

  • Commercial 58 mm portafilter system

  • Backflush capable

  • Commercial stainless steel steam wand

  • Fully articulated steam wand

  • No-burn steam wand design

  • Swappable steam tips

  • 2-hole steam tip

  • Large 101.4 fl oz removable water reservoir

  • Passively heated stainless steel cup warmer

  • Large removable stainless steel drip tray

  • Mirror-finished stainless steel housing

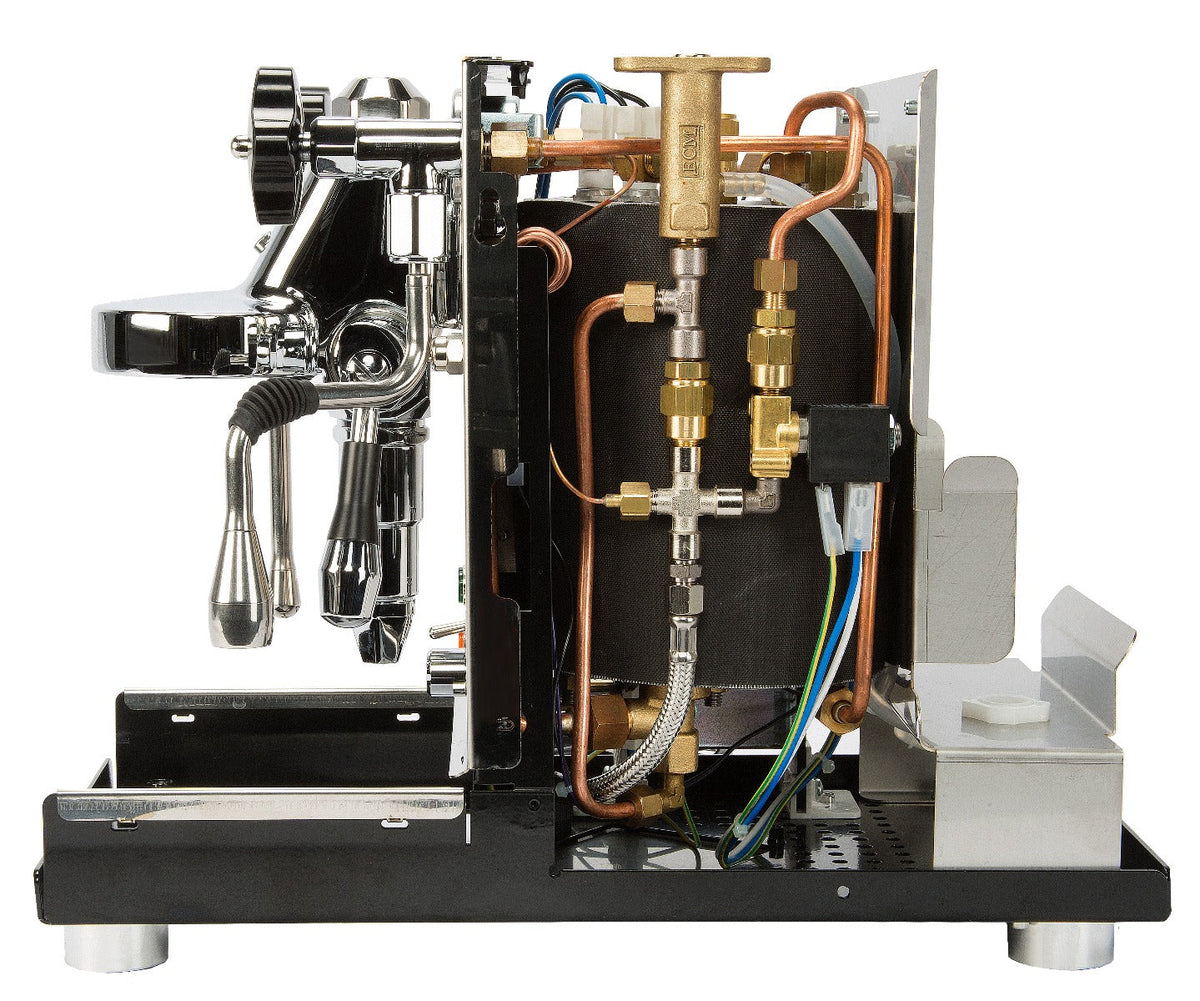

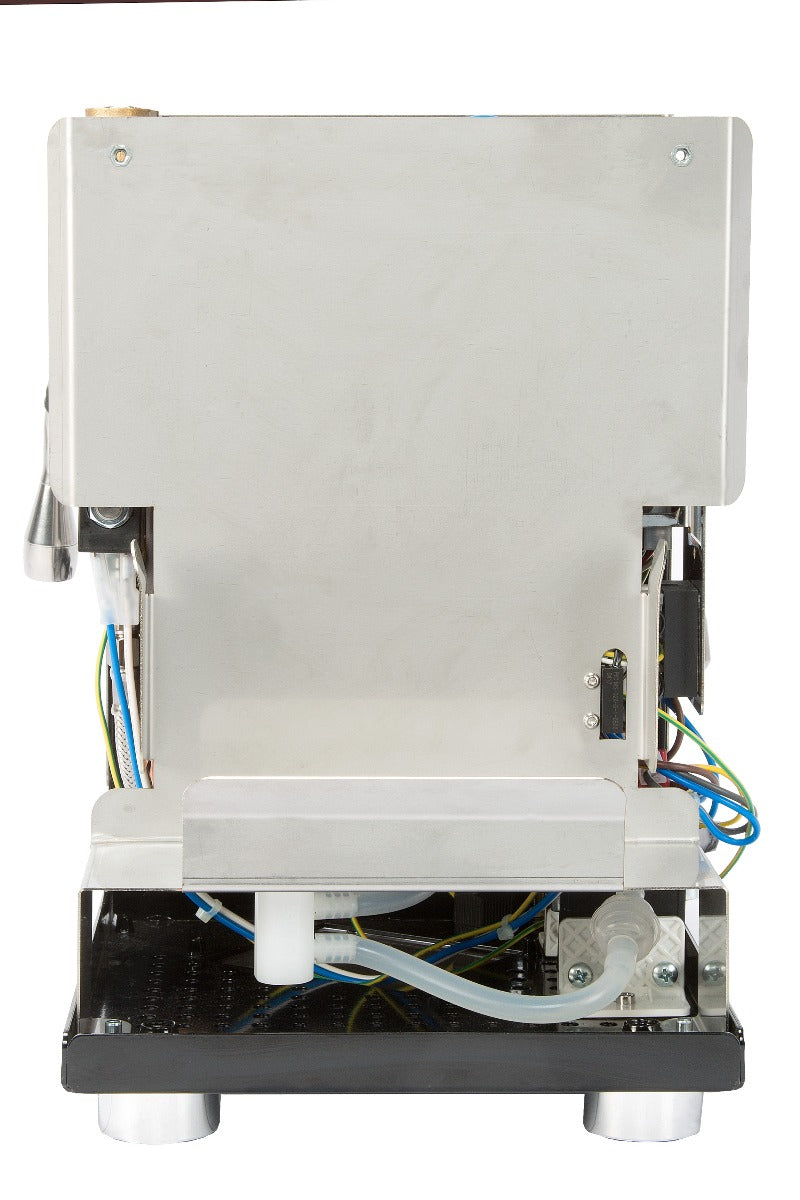

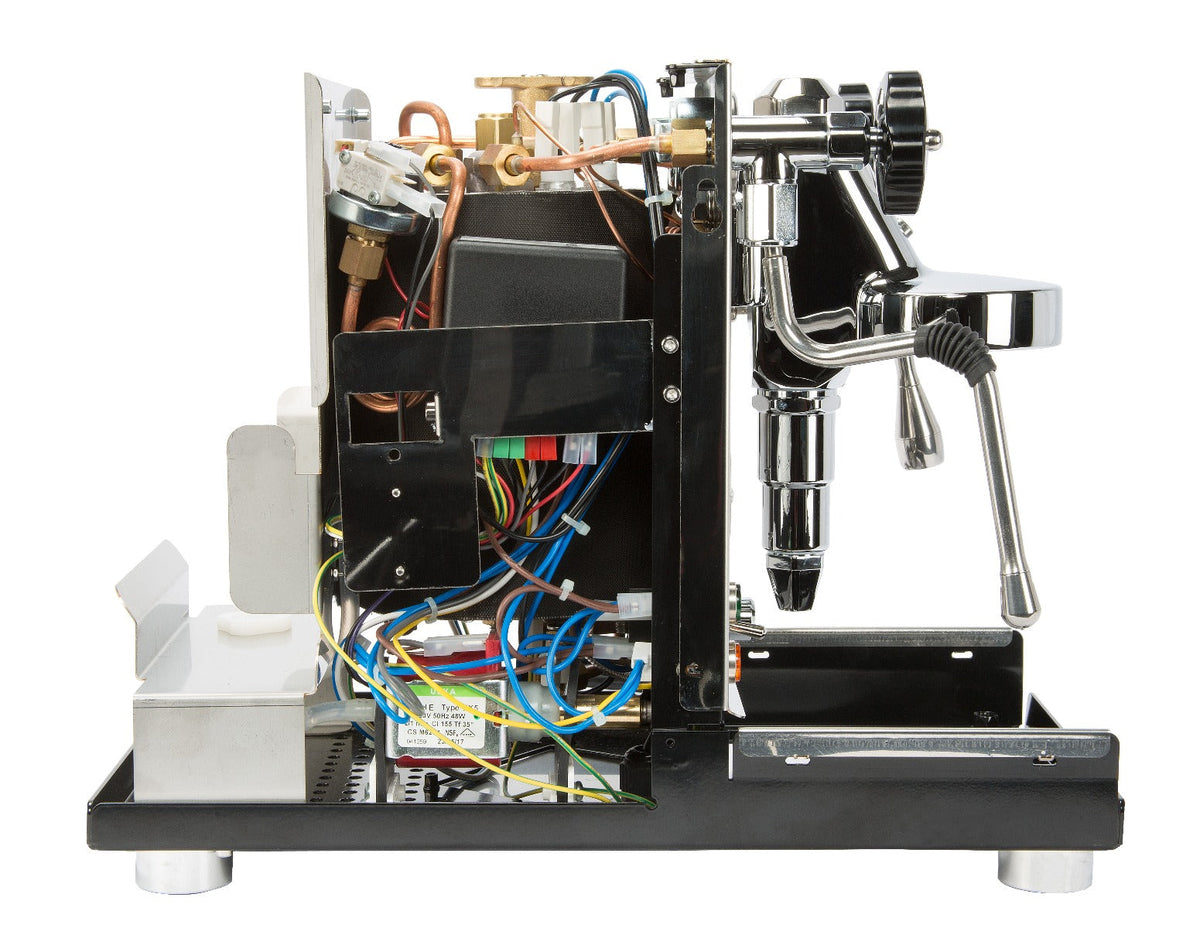

  • Vertically oriented boiler helps minimize machine width

  • Insulated boiler for improved energy efficiency

  • Designed for home and residential use

  • Backed by a 3-year parts and labor warranty

ECM Mechanika VI Slim Heat-Exchange Espresso Machine

Delivery & Returns From our store
to your door
  1. Order PlacedOrder received and confirmed
  2. ShipsDispatched within 1–2 business days
  3. In TransitTracking shared once your order ships
  4. DeliveredTypical total delivery window: 5–7 business days
  5. 30-Day ReturnsEligible items can be returned within 30 days
Estimated timing; see policies for conditions. Shipping policy Return policy
Product description

Product Overview

ECM Mechanika VI Slim Heat-Exchange Espresso Machine
Product media

Product Media Story

ECM Mechanika VI Slim Heat-Exchange Espresso Machine
ECM Mechanika VI Slim Heat-Exchange Espresso Machine
ECM Mechanika VI Slim Heat-Exchange Espresso Machine
ECM Mechanika VI Slim Heat-Exchange Espresso Machine
Product details

Specifications

Product Specifications
  • Brand: ECM

  • Product Name: Mechanika VI Slim Espresso Machine

  • SKU: 40368

  • Machine Type: Semi-Automatic Heat Exchanger Espresso Machine

  • Recommended Application: Home / Residential

  • Boiler Configuration: Heat Exchanger

  • Number of Boilers: 1

  • Housing Color: Stainless Steel

  • Housing Material: Stainless Steel

  • App Connectivity: No

  • NSF Certified: No

  • Display Type: Indicator Lights

  • Control Type: Lever / Temperature Switch

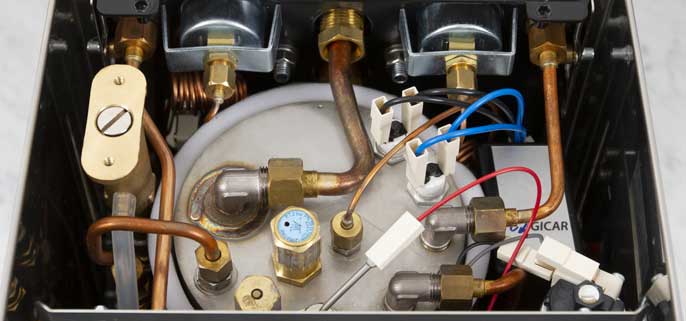

Boiler & Brewing System


  • Boiler Capacity: 74.4 fl oz / approximately 2.2 L

  • Boiler Material: Stainless Steel

  • Boiler Orientation: Vertical

  • Boiler Insulation: Yes

  • Boiler Heater Location: Internal

  • Boiler Wattage: 1400 W

  • Automatic Boiler Fill: Yes

  • Brew & Steam Simultaneously: Yes

  • Brew Group Type: E61

  • Brew Group Size: 58 mm

  • Brew Group Material: Chrome-Plated Brass

  • Three-Way Valve: Manual

  • Backflush Capable: Yes

  • Temperature Control: Three-Position Switch / PID

  • Pre-Infusion: Selectable

  • Adjustable Brew Pressure: Yes

  • Maximum Pump Pressure: 15 Bar

  • Pump Type: Vibration

  • Pressure Gauges: Brew Circuit and Steam Boiler

Portafilter System


  • Portafilter Diameter: 58 mm

  • Portafilter Type: Commercial Style

  • Portafilter Material: Chrome-Plated Brass

  • Portafilter Handle Material: Bakelite Plastic / Plastic

  • Number of Portafilters Included: 2

  • Included Filter Baskets: Single and Double

  • Coffee Compatibility: Ground Coffee

  • Bottomless Portafilter Available: Yes

Steam System


  • Steam Wand: Commercial

  • Steam Wand Material: Stainless Steel

  • Steam Wand Movement: Fully Articulated

  • Steam Wand Features: No-Burn, Swappable Steam Tips

  • Steam Tip Holes: 2

  • Steam Boiler Vacuum Relief Valve: Yes

Water System


  • Water Reservoir Capacity: 101.4 fl oz

  • Water Reservoir Access: Top

  • Reservoir: Removable

  • Reservoir Material: Plastic

  • Water Source: Built-In Reservoir

  • Direct Plumbing: No

  • Recommended Water Filter: BWT Bestsave M Anti-Scale Filter

Cup Warmer & Drip Tray


  • Cup Warmer: Passively Heated

  • Cup Warmer Material: Stainless Steel

  • Cup Warmer Size: 10.5 × 9.5 in

  • Drip Tray Capacity: 35 fl oz

  • Drip Tray Material: Stainless Steel

  • Drip Tray Cover: Stainless Steel

  • Removable Drip Tray: Yes

Dimensions & Weight


  • Width: 9.8 in

  • Height: 15.5 in

  • Depth: 17.5 in

  • Weight: 55.5 lb

Electrical


  • Voltage: 110–120 V

  • Power: 1400 W

  • Amperage: 11.6 A

  • Power Cord Length: 50 in

  • Power Cord Storage: No

Warranty


  • Manufacturer Warranty: 3-Year Parts and Labor Warranty

In the box

What's Included

  • 1 × ECM Mechanika VI Slim Espresso Machine

  • 2 × 58 mm Commercial-Style Portafilters

  • 1 × Single-Shot Filter Basket

  • 1 × Double-Shot Filter Basket
